Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)

Name: Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)
Brand: Shenzhen Shomea Hardware Products Co.,Ltd
SKU: OEM
Price: Negotiable USD
Availability: InStock

All Products

Stainless Steel Needle
(292)

Stainless Steel Tube Processing
(182)

Food Piercing Needle
(10)

Flexible Snake Bone Tube
(14)

Stainless Steel IVD Needle
(38)

Dental Presion Components Processing
(12)

Aluminum Telescopic Pole
(89)

Stainless Steel Telescopic Pole
(75)

Certification

I'm Online Chat Now

Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)

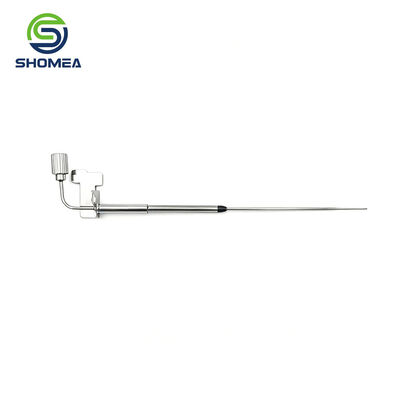

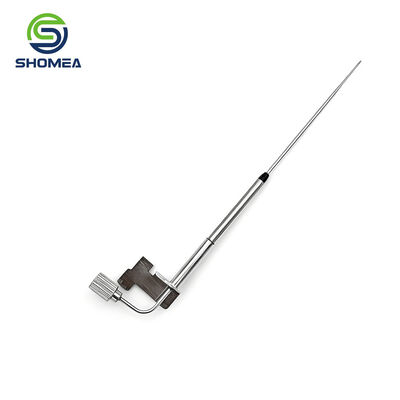

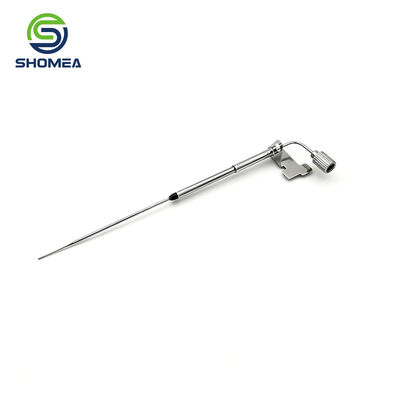

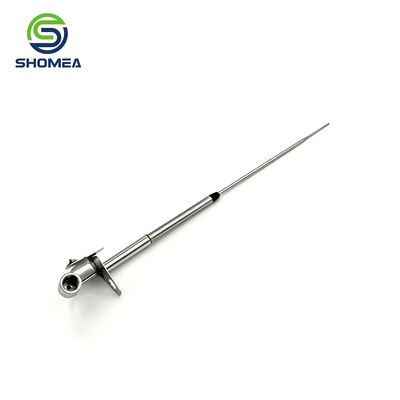

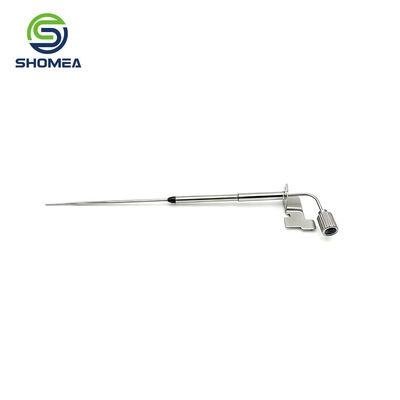

Large Image : Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)

Product Details:

Place of Origin:	China
Brand Name:	N/A
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	N/A
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100000pcs/ month

Contact Now

Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)

Products Name	Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized IVD Stainless Steel Probe Component with Polished Surface (Made to Customer Drawing)

Non-sterile stainless steel flexible/articulated tube component — build to print. Not a finished medical device. Not for individual/clinical direct use. Sold only to qualified equipment/manufacturer customers for further assembly/validation.

Product Highlights:

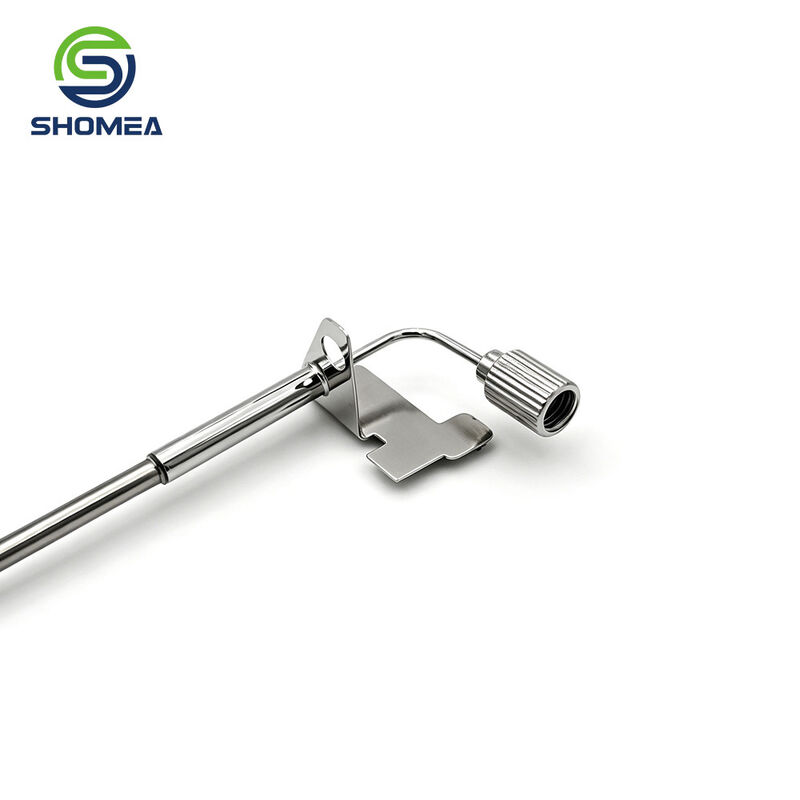

Integrated metal bracket provides stable installation base and physical limit, preventing displacement during operation, ensuring reliable component integration.
Knurled threaded port allows easy manual tightening for secure, sealed connection with external tubing or fittings, ensuring reliable component integration.

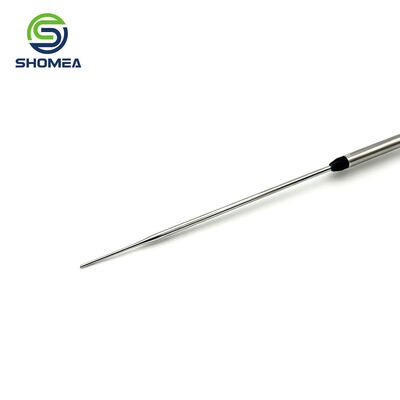

Ultra-fine stainless steel tip with stepped shaft transition enables access to narrow areas while maintaining strength and precise guidance, maintaining consistent component geometry.
Precision bent linkage optimizes spatial angle layout, avoids interference, and adapts to complex installation needs, maintaining consistent component geometry.
Mirror polishing ensures a smooth, non-adhesive surface with excellent corrosion and oxidation resistance for easy maintenance, ensuring clean component surface.

Frequently Asked Questions:

Q1: What is the function of the integrated metal mounting bracket in practical use?

A1: The integrated metal bracket provides a stable installation base and physical limit, preventing displacement during operation and keeping the probe component in the preset working position, ensuring reliable component integration.

Q2: What are the advantages of the knurled threaded connection port?

A2: The knurled threaded port allows easy manual tightening for a secure, sealed connection with external tubing or fittings, improving assembly efficiency and reliability, ensuring reliable component integration.

Q3: What is the purpose of the ultra-fine tip with stepped shaft design?

A3: The ultra-fine stainless steel tip with stepped shaft transition enables smooth access to narrow areas while maintaining main body strength and precise guidance, maintaining consistent component geometry.

Q4: What problem does the high-precision bent linkage structure solve?

A4: The precision bent linkage creates an optimized spatial angle layout, improves handling orientation, avoids interference, and adapts to complex installation requirements, maintaining consistent component geometry.

Q5: How does mirror polishing help with daily maintenance?

A5: Mirror polishing ensures a smooth, non-adhesive surface with excellent corrosion and oxidation resistance, staying clean over long-term use for easy maintenance, ensuring clean component surface.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer. We provide build-to-print machining of small-diameter stainless steel tubes, probe/tube components, threaded hubs, knurled parts and bent tubes.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All items are non-sterile machined components produced according to the buyer’s drawings, samples and specifications.

Design validation, biocompatibility, sterilization, labeling and regulatory approval of the finished medical device are the responsibility of the purchaser (medical device manufacturer / equipment brand owner).

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
