Customized IVD Sampling Needle Component with Extended Straight Probe (Made to Customer Drawing)

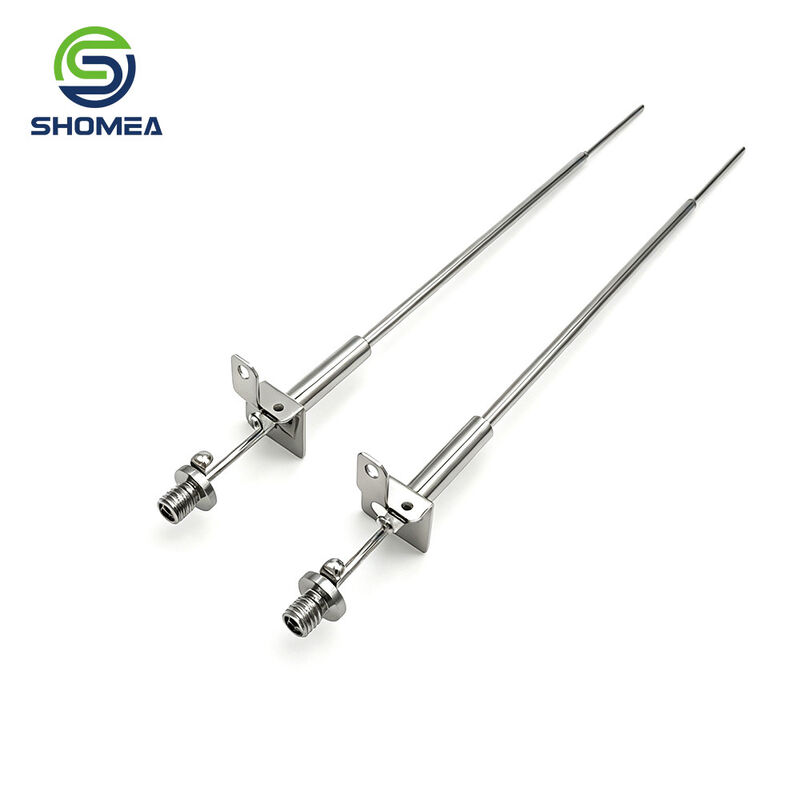

Large Image : Customized IVD Sampling Needle Component with Extended Straight Probe (Made to Customer Drawing)

Product Details:

Place of Origin:	China
Brand Name:	N/A
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	N/A
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100000pcs/ month

Contact Now

Customized IVD Sampling Needle Component with Extended Straight Probe (Made to Customer Drawing)

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized IVD Sampling Needle Component with Extended Straight Probe (Made to Customer Drawing)

Products Name	Customized IVD Sampling Needle Component with Extended Straight Probe (Made to Customer Drawing)
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized IVD Sampling Needle Component with Extended Straight Probe (Made to Customer Drawing)

Non-sterile stainless steel flexible/articulated tube component — build to print. Not a finished medical device. Not for individual/clinical direct use. Sold only to qualified equipment/manufacturer customers for further assembly/validation.

Product Highlights:

The square flange positioning bracket provides a flat datum surface and dual hole locking scheme for precise positioning on equipment panels while keeping the needle body component axially stable, ensuring reliable component integration.
The external threaded coupling connector works with fasteners to achieve reliable mating with tubing or fittings, ensuring tight pathway connection and easy disassembly for maintenance, ensuring reliable component integration.
The slender gradual needle tip features a smooth tapered profile to reduce penetration and insertion resistance, suitable for targeted sampling in narrow and elongated channels, maintaining consistent component geometry.
The extended straight shaft design increases reach for deep or remote sampling scenarios while maintaining overall rigidity and coaxial alignment, maintaining consistent component geometry.
The mirror-polished stainless steel integral construction has a smooth and dense surface that withstands routine cleaning and reagent exposure, meeting repeated use requirements in laboratory environments, ensuring clean component surface.

Frequently Asked Questions:

Q1: What mounting methods can the square flange of this sampling needle component accommodate?

A1: The square flange positioning bracket provides a flat datum surface and dual hole locking scheme, supporting screw fixing or panel embedding to adapt to different equipment structures, ensuring reliable component integration.

Q2: Will the external threaded coupling connector loosen after frequent disassembly?

A2: The external threaded coupling connector remains stable after locking with fasteners, maintaining tight mating through repeated disassembly for easy maintenance and replacement, ensuring reliable component integration.

Q3: How does the slender gradual needle tip reduce sample residue?

A3: The slender gradual needle tip features a smooth tapered profile with a non-stick surface, reducing liquid retention and lowering cross-contamination risk for higher sampling purity, maintaining consistent component geometry.

Q4: Does the extended straight shaft design affect sampling accuracy?

A4: The extended straight shaft design maintains overall rigidity and coaxial alignment while extending reach, ensuring stable path and accurate positioning during deep sampling, maintaining consistent component geometry.

Q5: How does the mirror-polished surface handle daily cleaning?

A5: The mirror-polished stainless steel integral construction has a dense, dead-corner-free surface that can be cleaned by routine wiping or ultrasonic washing, suitable for high-frequency laboratory use, ensuring clean component surface.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer. We provide build-to-print machining of small-diameter stainless steel tubes, probe/tube components, threaded hubs, knurled parts and bent tubes.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All items are non-sterile machined components produced according to the buyer’s drawings, samples and specifications.

Design validation, biocompatibility, sterilization, labeling and regulatory approval of the finished medical device are the responsibility of the purchaser (medical device manufacturer / equipment brand owner).

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
