Customized Pen Tip Side Hole Needle with Precision Ground Bevel

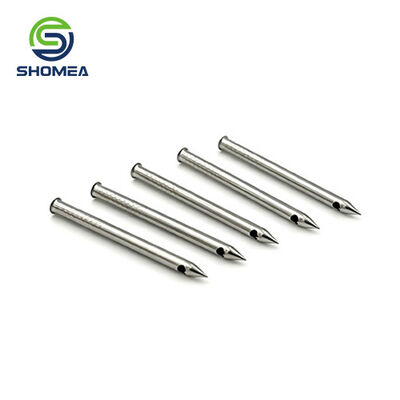

Large Image : Customized Pen Tip Side Hole Needle with Precision Ground Bevel

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized Pen Tip Side Hole Needle with Precision Ground Bevel

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Pen Tip Side Hole Needle with Precision Ground Bevel

Products Name	Customized Pen Tip Side Hole Needle with Precision Ground Bevel
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Product Highlights

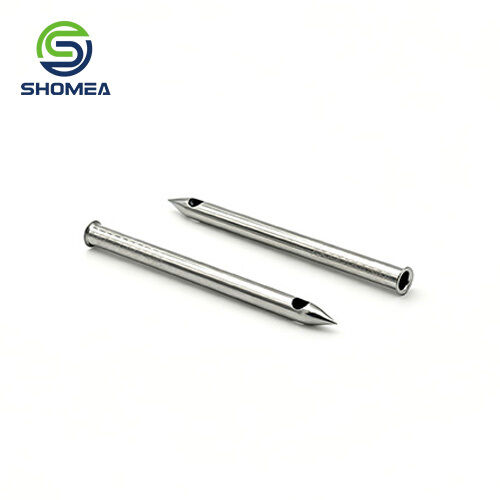

1.Precision Pen / Willow-Leaf Tip

Crafted with high-accuracy grinding, the pen-style or willow-leaf beveled tip features a smooth finish for streamlined penetration, accurate positioning, and reduced tissue resistance or deflection.

2.Optimized Side Port Design

A side hole (lateral eye / side port) near the tip creates an alternative pathway, minimizing end-blockage risks while maintaining a stable and clear flow channel.

3.Flared End / Flange Finish

The tail accepts flaring (flange / flared-end) treatment to ensure a secure connection with matching tubing or fittings, enhancing overall assembly sealing and reliability.

4.Premium Stainless Steel & Polished Lumen

Made from medical-grade stainless steel precision tubing with a finely polished inner lumen; the smooth wall surface reduces friction and allows efficient passage of samples or media.

5.Flexible Customization & Surface Options

Fully customizable in outer diameter, length, side-hole placement, tip angle, and flare dimensions; optional laser marking and knurled grip finishes are available for versatile application needs.

FAQ:

Q1: What is special about the tip of this pen tip side hole needle?

A: It features a precision-ground pen-style bevel with a smooth finish for smooth penetration and accurate positioning, while reducing tissue resistance and deflection.

Q2: What is the function of the side hole? What advantages does it have over a regular needle?

A: The side hole provides an alternative pathway for lateral drainage, injection, or sampling, effectively reducing the risk of end-hole blockage and maintaining a stable flow channel.

Q3: What is the practical benefit of the flared end design?

A: The flaring creates a widened mouth or flange structure at the tail, allowing a tight connection with tubing or fittings, preventing detachment or leakage, and improving overall assembly sealing and reliability.

Q4: How does the smoothness of the inner lumen affect performance?

A: The inner lumen is precision-polished to achieve a smooth, low-friction surface, ensuring smooth passage of samples or fluids, reducing residue buildup, and improving operational efficiency.

Q5: What customization options do you offer?

A: We offer customization in outer diameter, length, side-hole position and diameter, tip angle, and flare dimensions, along with laser marking and knurled grip surface finishes to meet various application requirements.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,
If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
