Customized Temperature Probe Tube with Round Sealed End

Large Image : Customized Temperature Probe Tube with Round Sealed End

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized Temperature Probe Tube with Round Sealed End

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Temperature Probe Tube with Round Sealed End

Products Name	Customized Temperature Probe Tube with Round Sealed End
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Temperature Probe Tube with Round Sealed End

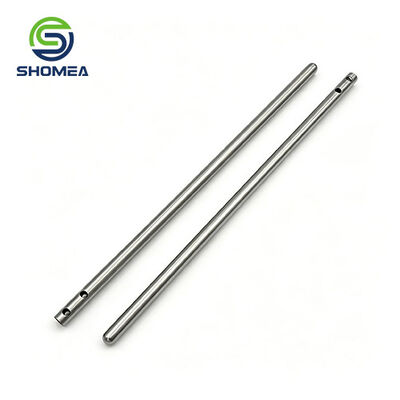

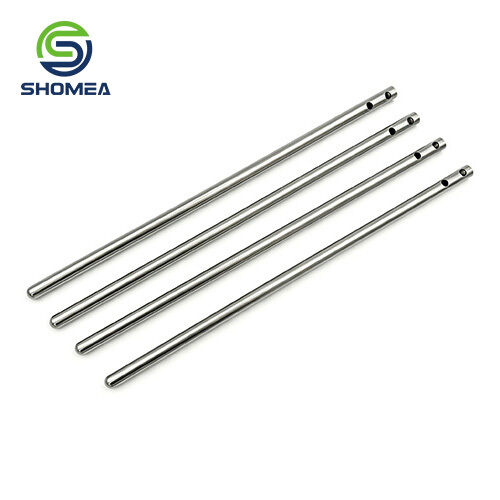

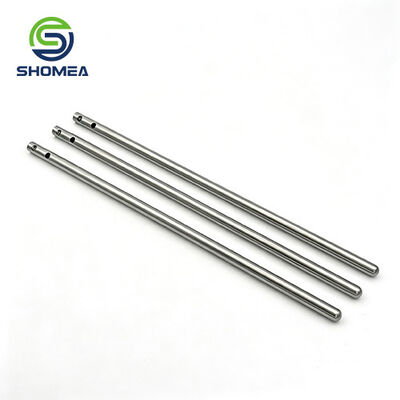

Product Highlights:

Premium Stainless Steel: Made from 304/316 stainless steel for excellent corrosion resistance and durability in high-temperature environments.
Round Sealed End: Laser-welded round head design provides a complete seal against moisture, dust, and gas intrusion.
Precision Side Holes: Strategically placed side openings allow direct fluid contact with the sensor for faster and more accurate temperature response.
Smooth Surface Finish: Fine-polished tube surface reduces friction for easy installation in tight spaces.
Fully Customizable: Supports OEM customization for diameter, wall thickness, length, and hole positions per your specifications.

Frequently Asked Questions:

Q1: What is this temperature probe tube used for?

A1: It serves as a protective casing for temperature sensors in industrial, medical, and automotive applications.

Q2: Why choose a sealed round head design?

A2: The sealed round head prevents liquid and gas from entering, protecting the internal sensor from damage.

Q3: What is the purpose of the side holes?

A3: Side holes allow the measured medium to contact the sensor directly, improving response time and accuracy.

Q4: Can the tube size be customized?

A4: Yes. We offer full OEM customization for diameter, length, wall thickness, and hole configuration.

Q5: What materials are available?

A5: Standard options include 304 and 316 stainless steel, with other materials available upon request.
