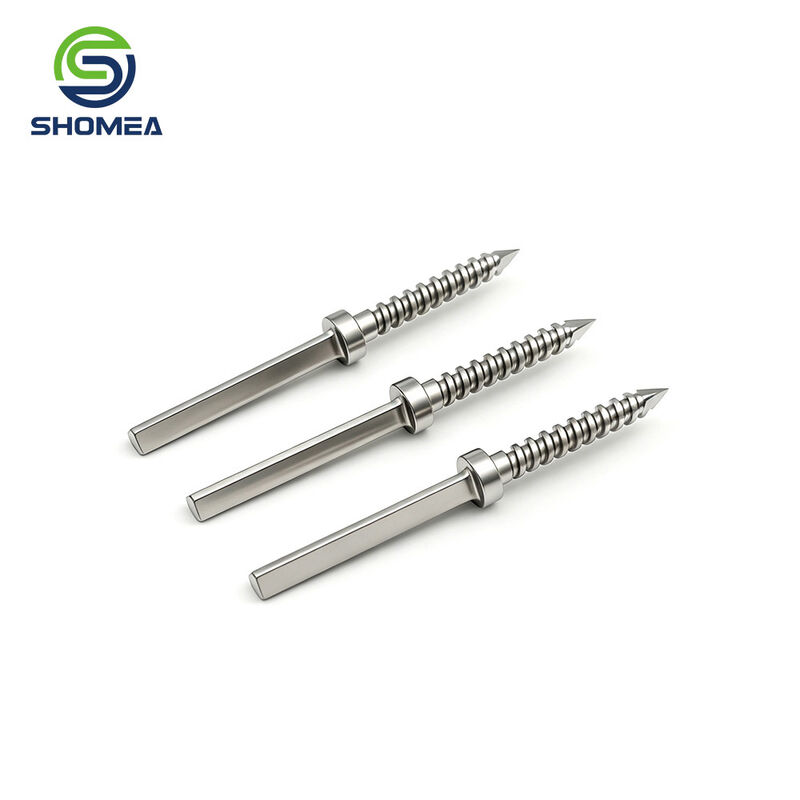

Customized Threaded Pin with High Precision Thread and Sharp Tip

Large Image : Customized Threaded Pin with High Precision Thread and Sharp Tip

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized Threaded Pin with High Precision Thread and Sharp Tip

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Threaded Pin with High Precision Thread and Sharp Tip

Products Name	Customized Threaded Pin with High Precision Thread and Sharp Tip
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Product Highlights:

1. Made from medical-grade stainless steel with precision machining, featuring a dense structure and excellent overall strength with anti-deformation performance.

2. The front section is equipped with continuous precision threads and a sharp conical tip; the regular spiral groove ensures stable insertion and enhanced gripping retention.

3. The surface undergoes fine polishing or brushed finishing with controllable smoothness to reduce friction and minimize the chance of residue adhesion.

4. The tail end offers round/square shank and stop collar options with tight dimensional tolerance control to meet various tool-holding and assembly positioning requirements.

5. Non-standard customization is supported, allowing adjustments to thread specifications, rod length, head shape and surface finish per drawings for diverse applications.

Frequently Asked Questions:

Q1: What is this flat head punch pin used for?

A1: Used for precision stamping, positioning, and riveting in molds, automation equipment, and electronic assembly.

Q2: What is the advantage of a flat head vs pointed tip?

A2: The flat head provides smooth, non-penetrating thrust, ideal for pushing or assembling parts without causing damage.

Q3: Can the size be customized?

A3: Yes. We offer full OEM customization for diameter, length, and limit collar specifications.

Q4: What material is available?

A4: Standard in 304/316 stainless steel, with other materials available upon request.

Q5: How is quality ensured?

A5: Each pin undergoes strict inspection for dimensional accuracy, surface finish, and hardness.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
