Customized Small Straight Tube with Square Base for Stable Mounting

Name: Customized Small Straight Tube with Square Base for Stable Mounting
Brand: Shenzhen Shomea Hardware Products Co.,Ltd
SKU: OEM
Price: 15 USD
Availability: InStock

All Products

Stainless Steel Needle
(234)

Stainless Steel Tube Processing
(139)

Aluminum Telescopic Pole
(89)

Stainless Steel Telescopic Pole
(75)

Certification

I'm Online Chat Now

Customized Small Straight Tube with Square Base for Stable Mounting

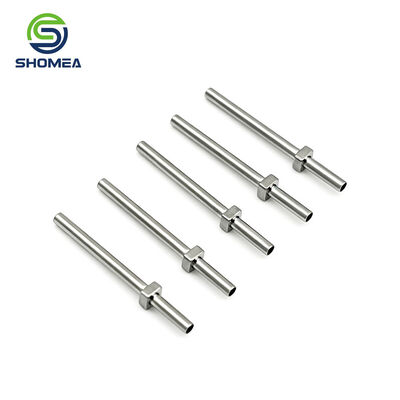

Large Image : Customized Small Straight Tube with Square Base for Stable Mounting

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized Small Straight Tube with Square Base for Stable Mounting

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Small Straight Tube with Square Base for Stable Mounting

Products Name	Customized Small Straight Tube with Square Base for Stable Mounting
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Product Highlights:

Premium Material:

Made from high-quality stainless steel via precision drawing, with excellent straightness and anti-torsion performance for long-term stability.

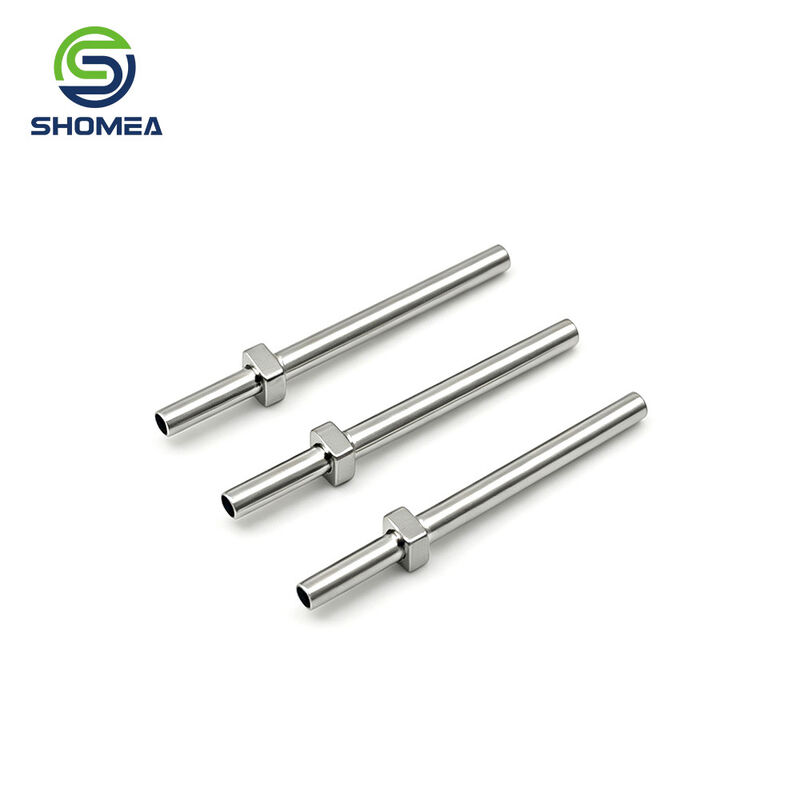

Square Base Design:

A square base / block collar is mounted at the middle section with precise coaxial alignment, serving as a reliable positioning and stop structure for quick assembly.
Stepped Diameter Design:

The stepped diameter design with different outer diameters at each end allows adaptation to various sleeves or connectors, enhancing compatibility.
Optional Surface Finish:

Optional sand blasting or matte finish on selected sections creates a uniform texture that improves grip friction and visual distinction.
Precision Inner Bore:

The inner bore undergoes precision polishing and deburring for a smooth lumen, with custom length, OD and base dimensions available per drawing.

Frequently Asked Questions:

Q1: What role does the square base play?

A1: It provides axial stop and radial positioning to prevent rotation or displacement after assembly, ensuring a secure connection.

Q2: Which components is this small straight tube suitable for?

A2: With its stepped diameter and standard base, it fits precision fittings, sleeves and mounts for diverse assembly needs.

Q3: What are the benefits of stainless steel?

A3: It offers rust and oxidation resistance with a smooth, easy-to-clean surface for stable performance.

Q4: Can base position and tube length be customized?

A4: Yes, full custom machining is supported per drawing for base position, length, diameters and surface finish.

Q5: How are tube edges kept from scratching parts?

A5: All openings are chamfered and deburred for smooth, rounded edges that protect contact surfaces.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
