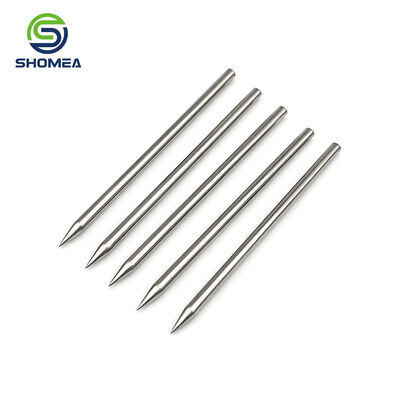

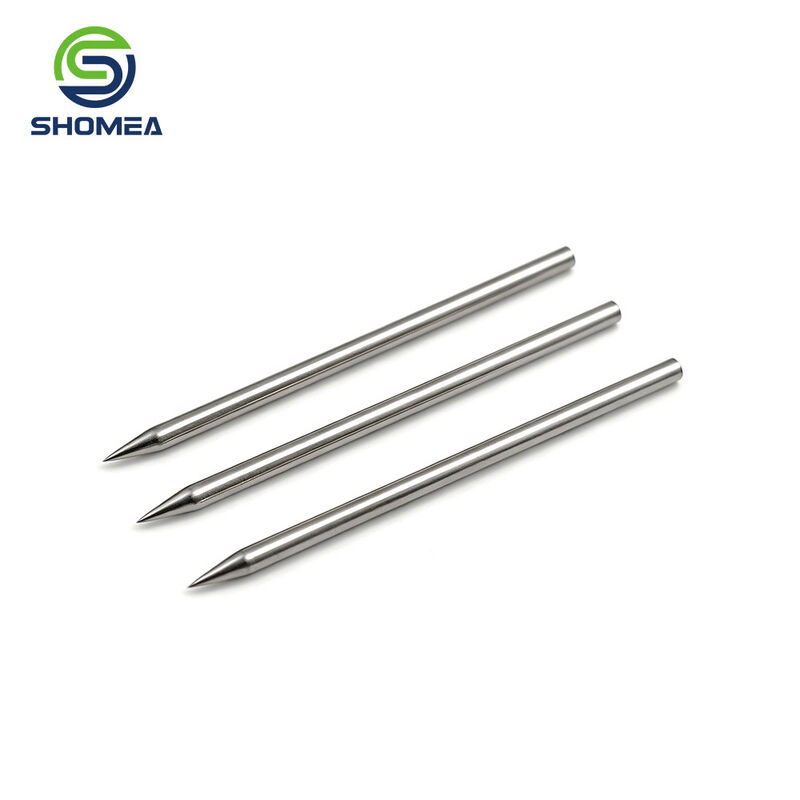

Customized Pencil Point Needle with Sharp Solid Tip

Name: Customized Pencil Point Needle with Sharp Solid Tip
Brand: Shenzhen Shomea Hardware Products Co.,Ltd
SKU: OEM
Price: 15 USD
Availability: InStock

All Products

Stainless Steel Needle
(244)

Stainless Steel Tube Processing
(145)

Aluminum Telescopic Pole
(89)

Stainless Steel Telescopic Pole
(75)

Best Products

Shomea Customized 14G Stainless Steel pencil point needle with side hole

CUSTOMIZED SMALL DIAMETER STAINLESS STEEL 12G NEEDLE WITH METAL BASE

Customized small diameter Stainless Steel Side hole pencil point needle with male thread

Certification

I'm Online Chat Now

Customized Pencil Point Needle with Sharp Solid Tip

Large Image : Customized Pencil Point Needle with Sharp Solid Tip

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized Pencil Point Needle with Sharp Solid Tip

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Pencil Point Needle with Sharp Solid Tip

Products Name	Customized Pencil Point Needle with Sharp Solid Tip
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Pencil Point Needle with Sharp Solid Tip

Product Highlights:

Pencil-point tapered tip design enables precise penetration with minimal tissue damage, suitable for high-sensitivity operation scenarios.
No-side-hole structure ensures unidirectional stable output of fluid or gas, preventing leakage or diversion, enhancing process consistency.
High-precision CNC grinding process guarantees minimal tip angle and cylindricity deviation, meeting micron-level positioning requirements.
Electropolished surface treatment achieves roughness as low as Ra≤0.2μm, reducing friction resistance, ideal for repeated insertion or sliding applications.
Material options include 304/316L stainless steel or titanium alloy, offering excellent corrosion resistance and biocompatibility, suitable for medical and laboratory environments.

Frequently Asked Questions:

Q1: Is this pencil point needle suitable for micro-injection or cell manipulation?

A1: Yes, its ultra-fine tip and no-side-hole design enable micron-level precision control, ideal for cell injection or microfluidic experiments.

Q2: Does the tip dull or damage easily? How is the service life?

A2: Made with hard alloy grinding + electropolishing, the tip offers high hardness and wear resistance, remains sharp after multiple reuses.

Q3: If used in medical devices, can it withstand sterilization?

A3: Compatible with autoclaving or ethylene oxide sterilization, material remains stable — no impact on structure or performance, compliant with medical disinfection standards.

Q4: Can I customize different lengths and tip angles?

A4: Non-standard customization supported, including length, outer diameter, tip angle (e.g., 15°/30°/45°), with or without flange or chamfer, flexibly adapting to equipment interfaces.

Q5: Are there price discounts or sample support for bulk orders?

A5: Tiered pricing available, bulk orders enjoy discounts.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
