Customized Single Bevel Tip Needle with Sharp Edge

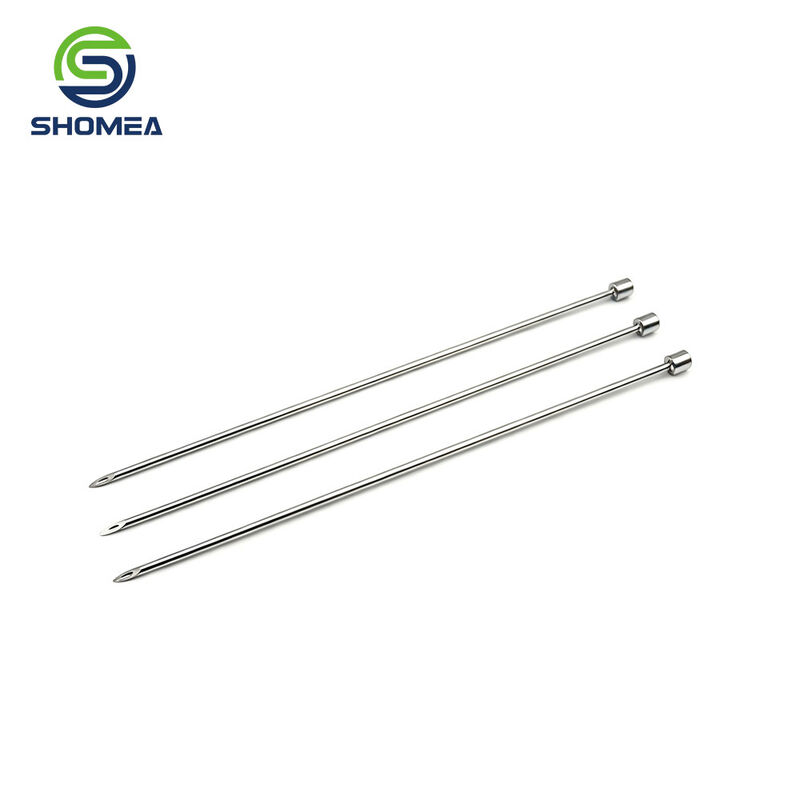

Large Image : Customized Single Bevel Tip Needle with Sharp Edge

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized Single Bevel Tip Needle with Sharp Edge

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Single Bevel Tip Needle with Sharp Edge

Products Name	Customized Single Bevel Tip Needle with Sharp Edge
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Single Bevel Tip Needle with Sharp Edge

Product Highlights:

1. Features a single bevel tip design with a smooth cutting edge and precise angle, ensuring smooth puncture and fluid aspiration while minimizing tissue damage.

2. Constructed from medical-grade stainless steel, the shaft undergoes high-gloss polishing treatment, offering excellent corrosion resistance and chemical stability, compatible with various sterilization methods.

3. Equipped with a standard hub at the tail, it fits mainstream syringes and medical tubing systems, providing easy installation and a secure connection to prevent leaks and detachment.

4. Manufactured using precision drawing and grinding processes, the internal lumen has a smooth, dead-end-free surface to reduce fluid resistance and ensure sample purity.

5. Customizable specifications (such as outer diameter, length, and bevel angle) are available, making it widely suitable for medical injection, laboratory sampling, veterinary care, and more.

Frequently Asked Questions:

Q1: What advantage does the single bevel tip offer over double symmetric bevel tips?

A1: The single bevel tip provides more controlled puncture direction, ideal for targeted injection and precision sampling, reducing tissue displacement and improving accuracy.

Q2: Is the hub compatible with standard Luer Lock syringes?

A2: Yes. The tail is equipped with a standard hub, compatible with mainstream Luer Lock syringes and catheter systems, ensuring secure connection with no leakage risk.

Q3: Is the inner wall smooth? Will it affect sample collection quality?

A3: The inner wall is precision-ground, featuring a smooth, dead-end-free surface that minimizes cell damage and sample residue, ensuring collection quality.

Q4: What sterilization methods does the needle support?

A4: It supports autoclave sterilization (134℃) and ethylene oxide sterilization, maintaining sharpness and structural integrity after repeated cycles.

Q5: Can the bevel angle be customized for specific surgical needs?

A5: Yes. Bevel angle, needle length, and outer diameter are customizable to meet fine operation requirements in ophthalmology, neurosurgery, veterinary care, and more.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
