Customized 17G Coaxial Needle by Precision Grinding and Electropolishing

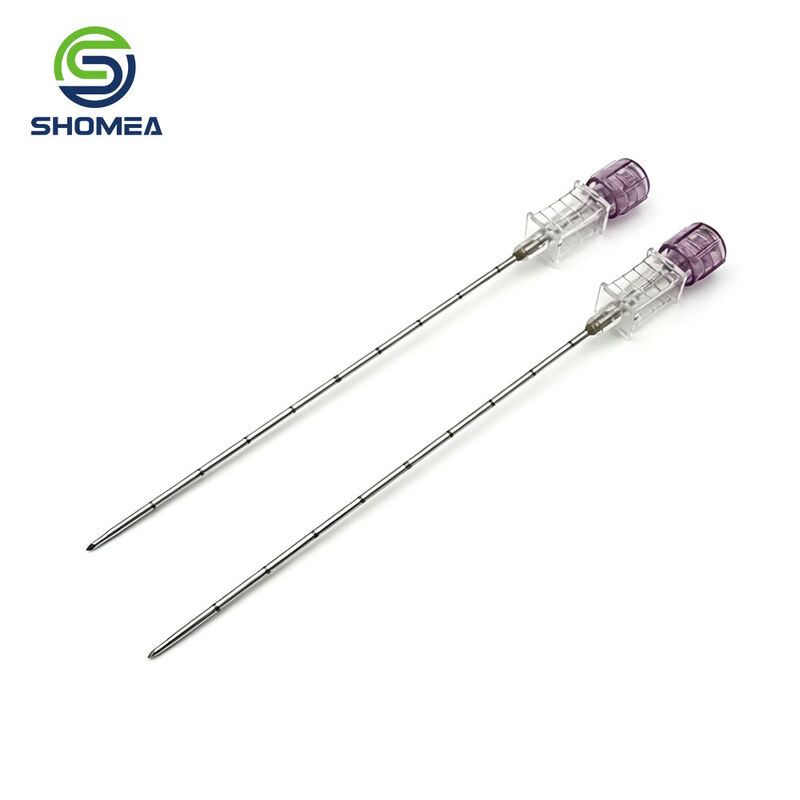

Large Image : Customized 17G Coaxial Needle by Precision Grinding and Electropolishing

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized 17G Coaxial Needle by Precision Grinding and Electropolishing

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized 17G Coaxial Needle by Precision Grinding and Electropolishing

Products Name	Customized 17G Coaxial Needle by Precision Grinding and Electropolishing
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized 17G Coaxial Needle by Precision Grinding and Electropolishing

Product Highlights:

1. Features a 17G large-bore design with a spacious inner lumen, facilitating tissue cutting and sample extraction when paired with a coarser needle, while reducing fluid resistance for smooth operation.

2. The shaft is marked with clear depth calibration scales, allowing real-time monitoring of insertion depth during puncture to enhance positioning accuracy and procedural safety.

3. The tail is equipped with a purple standard Luer connector and transparent stabilizing wings, ensuring a secure fit with syringes or power injectors while preventing rotation or loosening during use.

4. The tip utilizes a precision-ground single-bevel edge, offering sharpness and minimal cutting resistance for smooth penetration and reduced trauma to surrounding tissues.

5. Constructed entirely from medical-grade stainless steel, the needle undergoes high-gloss polishing and surface passivation, providing excellent corrosion resistance and biocompatibility, and supporting standard autoclave or ethylene oxide sterilization.

Frequently Asked Questions:

Q1: What is the specific function of the scale markings on the 17G coaxial needle?

A1: The depth calibration scales on the shaft allow doctors to monitor insertion depth in real time during puncture, improving positioning accuracy and preventing over-insertion or under-insertion.

Q2: What is the purpose of the purple hub and transparent stabilizing wings?

A2: The purple hub enables quick size identification, while the transparent stabilizing wings provide secure grip to prevent rotation or loosening, and allow visual inspection of connection status.

Q3: Is this coaxial needle suitable for deep tissue biopsy?

A3: Yes, very suitable. The 17G large bore combined with the precision-ground single-bevel tip easily penetrates deep tissues while providing a stable channel for subsequent biopsy instruments.

Q4: How does the coaxial needle ensure fitting precision with the inner needle?

A4: The inner lumen and inner needle outer diameter feature precision tolerance fit, ensuring excellent coaxial alignment with smooth insertion and removal, reducing tissue drag.

Q5: Can the interface type be customized for specific equipment?

A5: Yes. We offer hub interface customization, including Luer Lock, male/female ends, threaded types, etc. Just provide your device model or drawing for precise matching.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
