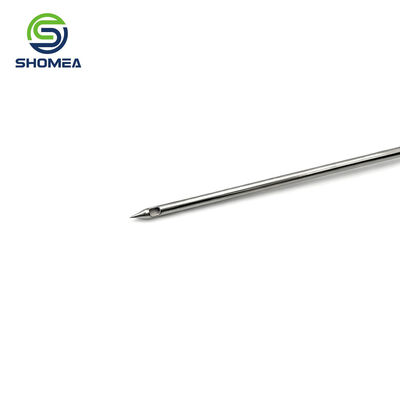

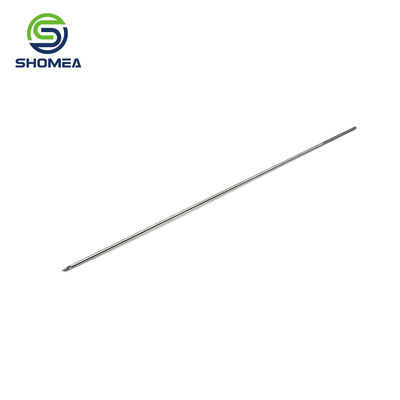

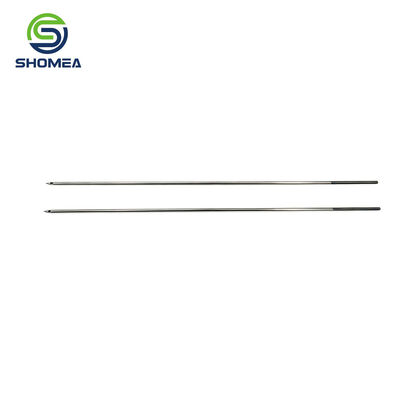

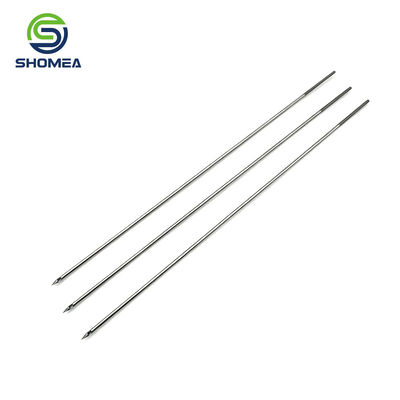

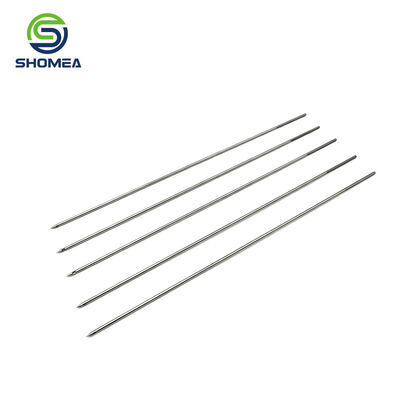

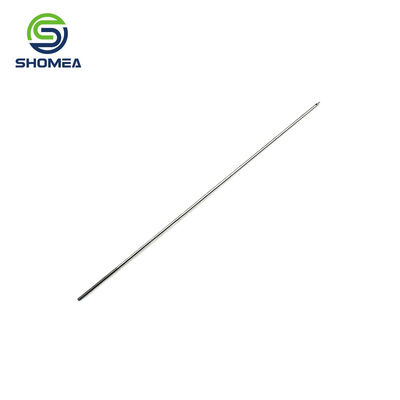

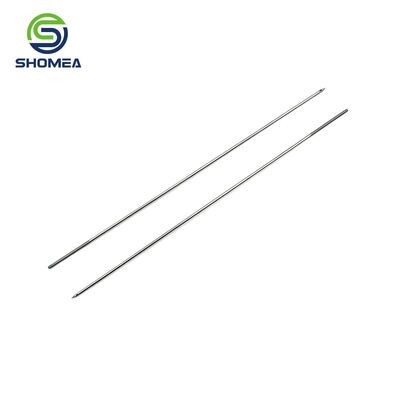

Customized Pencil Point Needle Component with Side Hole and Sandblasted Tail Section (Made to Customer Drawing)

Large Image : Customized Pencil Point Needle Component with Side Hole and Sandblasted Tail Section (Made to Customer Drawing)

Product Details:

Place of Origin:	China
Brand Name:	N/A
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	N/A
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100000pcs/ month

Contact Now

Customized Pencil Point Needle Component with Side Hole and Sandblasted Tail Section (Made to Customer Drawing)

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Pencil Point Needle Component with Side Hole and Sandblasted Tail Section (Made to Customer Drawing)

Products Name	Customized Pencil Point Needle Component with Side Hole and Sandblasted Tail Section (Made to Customer Drawing)
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Pencil Point Needle Component with Side Hole and Sandblasted Tail Section (Made to Customer Drawing)

Non-sterile stainless steel flexible/articulated tube component — build to print. Not a finished medical device. Not for individual/clinical direct use. Sold only to qualified equipment/manufacturer customers for further assembly/validation.

Product Highlights:

Features a pencil point blunt tip design with no sharp cutting edge, which can effectively separate material fibers during insertion, reducing material cutting trauma and damage risks while enhancing operational safety, maintaining consistent component geometry.
Equipped with a precision side hole at the front end of the needle body, which increases the fluid exchange area, improving the efficiency of liquid infusion or sample aspiration while maintaining structural strength, maintaining consistent component geometry.
The tail end adopts a sandblasting process, forming a uniform matte frosted layer on the surface, providing excellent anti-slip performance for secure grip and easy installation by operators, ensuring reliable component handling.
Made of high-grade stainless steel, combined with ultra-thin wall technology, ensuring the rigidity and kink resistance of the needle while minimizing the outer diameter to reduce application discomfort, ensuring durable component construction.
The needle body undergoes high-precision polishing and cleaning processes, ensuring the inner and outer walls are smooth and burr-free, effectively reducing fluid resistance and material adhesion, thus guaranteeing sample purity and smooth flow, ensuring clean component surface.

Frequently Asked Questions:

Q1: How does the insertion feel differ between the pencil point blunt tip and traditional bevel tip?

A1: The pencil point blunt tip provides more uniform resistance during insertion, pushing aside rather than cutting through material fibers, allowing operators to better perceive layer changes for improved control precision, maintaining consistent component geometry.

Q2: Can the position and size of the side hole be customized?

A2: Yes. The position, diameter, and quantity of side holes can be customized based on application requirements, accommodating different flow rate needs and delivery scenarios, ensuring reliable component integration.

Q3: Does the sandblasted tail affect the sealing performance when connecting to a syringe?

A3: No. The sandblasting is limited to the outer surface of the needle tail, while the connecting interface maintains a precision smooth surface, ensuring tight fit with syringes or tubing with no leakage risk, ensuring reliable component integration.

Q4: What specific applications is this pencil point needle component suitable for?

A4: It is suitable for procedures requiring blunt material separation, as well as therapeutic fluid infusion and contrast agent injection, ensuring reliable component integration.

Q5: Does the ultra-thin wall design compromise the needle's bending strength?

A5: No. We use high-strength stainless steel combined with precision heat treatment, maintaining excellent kink resistance and rigidity while reducing wall thickness, meeting operational strength requirements, ensuring durable component construction.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer. We provide build-to-print machining of small-diameter stainless steel tubes, probe/tube components, threaded hubs, knurled parts and bent tubes.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All items are non-sterile machined components produced according to the buyer’s drawings, samples and specifications.

Design validation, biocompatibility, sterilization, labeling and regulatory approval of the finished medical device are the responsibility of the purchaser (medical device manufacturer / equipment brand owner).

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
