Customized Pencil Point Needle with Side Hole and Sandblasted Tail Section

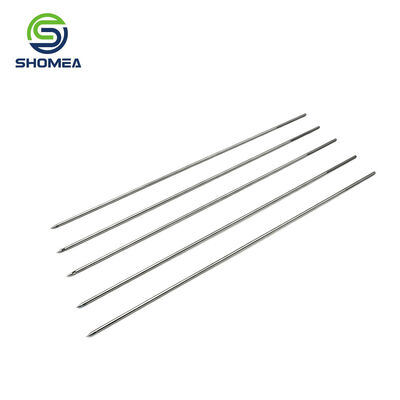

Large Image : Customized Pencil Point Needle with Side Hole and Sandblasted Tail Section

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized Pencil Point Needle with Side Hole and Sandblasted Tail Section

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Pencil Point Needle with Side Hole and Sandblasted Tail Section

Products Name	Customized Pencil Point Needle with Side Hole and Sandblasted Tail Section
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Pencil Point Needle with Side Hole and Sandblasted Tail Section

Product Highlights:

1. Needle Tip Design: Features a pencil point blunt tip design with no sharp cutting edge, which can effectively separate tissue fibers during insertion, reducing tissue cutting trauma and bleeding risks while enhancing operational safety.

2. Side Hole Structure: Equipped with a precision side hole at the front end of the needle body, which increases the fluid exchange area, improving the efficiency of liquid infusion or sample aspiration while maintaining structural strength.

3. Tail Treatment: The tail end adopts a sandblasting process, forming a uniform matte frosted layer on the surface, providing excellent anti-slip performance for secure grip and easy installation by medical staff.

4. Material and Wall Thickness: Made of medical-grade stainless steel, combined with ultra-thin wall technology, ensuring the rigidity and kink resistance of the needle while minimizing the outer diameter to reduce patient discomfort.

5. Surface Finish: The needle body undergoes high-precision polishing and cleaning processes, ensuring the inner and outer walls are smooth and burr-free, effectively reducing fluid resistance and cell adhesion, thus guaranteeing sample purity and smooth flow.

Frequently Asked Questions:

Q1: How does the puncture feel differ between the pencil point blunt tip and traditional bevel tip?

A1: The pencil point blunt tip provides more uniform resistance during insertion, pushing aside rather than cutting through tissue fibers, allowing operators to better perceive tissue layer changes for improved control precision.

Q2: Can the position and size of the side hole be customized?

A2: Yes. The position, diameter, and quantity of side holes can be customized based on clinical requirements, accommodating different flow rate needs and delivery scenarios.

Q3: Does the sandblasted tail affect the sealing performance when connecting to a syringe?

A3: No. The sandblasting is limited to the outer surface of the needle tail, while the connecting interface maintains a precision smooth surface, ensuring tight fit with syringes or catheters with no leakage risk.

Q4: What specific clinical procedures is this pencil point needle suitable for?

A4: It is suitable for epidural anesthesia, nerve blocks, intrathecal injections, and other procedures requiring blunt tissue separation, as well as therapeutic fluid infusion and contrast agent injection.

Q5: Does the ultra-thin wall design compromise the needle's bending strength?

A5: No. We use high-strength medical-grade stainless steel combined with precision heat treatment, maintaining excellent kink resistance and rigidity while reducing wall thickness, meeting clinical operation strength requirements.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
