Customized Optical Tube for Precision Equipment and Sensor Housing Applications

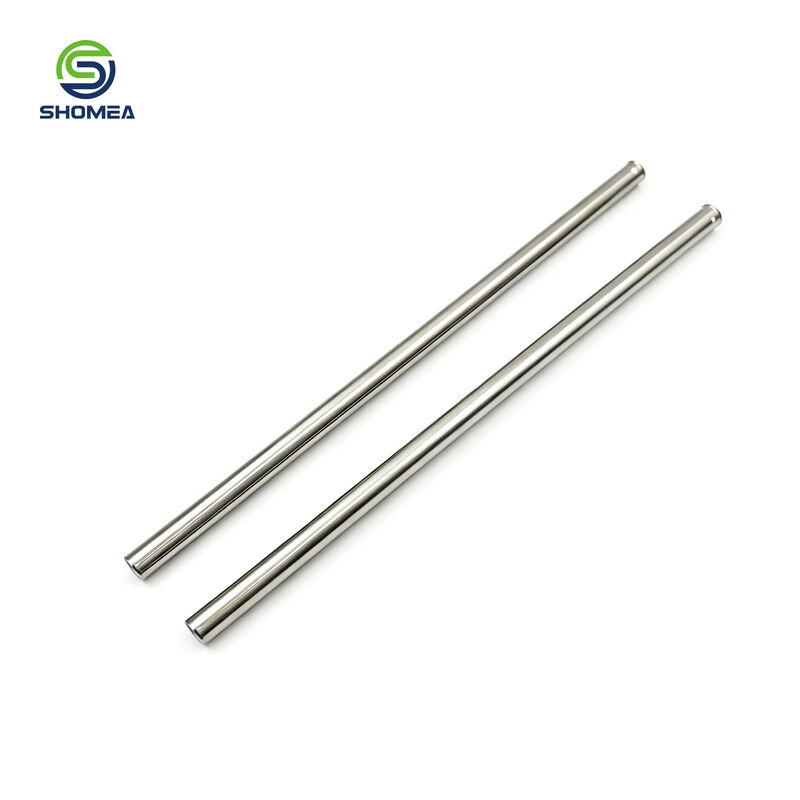

Large Image : Customized Optical Tube for Precision Equipment and Sensor Housing Applications

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized Optical Tube for Precision Equipment and Sensor Housing Applications

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Optical Tube for Precision Equipment and Sensor Housing Applications

Products Name	Customized Optical Tube for Precision Equipment and Sensor Housing Applications
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Optical Tube for Precision Equipment and Sensor Housing Applications

Product Highlights:

High-Precision Seamless Tubing & Dimensional Stability:Selected high-quality stainless steel seamless tubes as base material. Through precision drawing and CNC machining, ensures extremely high dimensional accuracy in outer diameter, inner diameter, and wall thickness for stable optical system support.
Mirror-Level Inner Wall Polishing & Low Light Scattering:Inner wall treated with mirror-level polishing process, achieving extremely low surface roughness. Effectively reduces internal light scattering and stray light interference for efficient laser or light transmission.
Excellent Straightness & Coaxiality:High-precision straightening ensures excellent straightness and superior coaxiality, preventing optical axis deviation after component assembly for improved imaging and transmission quality.
Flexible Port Customization & Interface Adaptation:Supports non-standard port customization including thread machining, chamfering, slotting, or flaring, perfectly adapting to various optical mounts, lens sleeves, and flanges.
Various Surface Treatments & Strengthening:Options include electropolishing, passivation, anodizing, or metal plating to enhance corrosion resistance, surface hardness, and optical performance at specific wavelengths.

Frequently Asked Questions:

Q1: What level of inner diameter precision can the optical tube achieve?

A1: Inner diameter tolerance can be controlled within ±0.01mm, ensuring tight fit with optical components and reducing light path deviation or assembly gaps.

Q2: Can chamfering or threading be added to both ends?

A2: Yes. Both ends support chamfering, threading, stepping, and other machining options for quick connection and fixation with other components.

Q3: Is this optical tube suitable for laser equipment?

A3: Yes. Made of high-precision stainless steel with smooth inner wall, it effectively reduces scattering and energy loss during laser transmission.

Q4: Does surface treatment affect optical performance?

A4: No. We offer matte or bright surface finishes as needed, which do not affect the internal light path while enhancing appearance and scratch resistance.

Q5: What is the minimum order quantity? What is the lead time?

A5: Minimum order quantity is 100 pieces, with a typical lead time of 7-15 working days, depending on quantity and process complexity.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
