Customized Snake Bone Tube for Endoscopic Instrument Bending Section

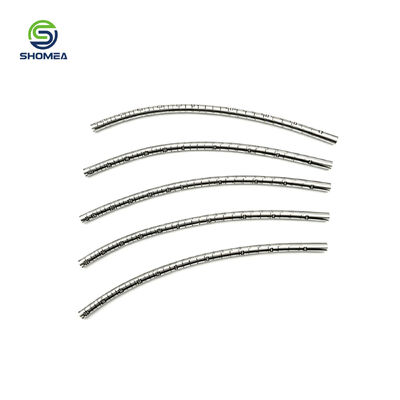

Large Image : Customized Snake Bone Tube for Endoscopic Instrument Bending Section

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized Snake Bone Tube for Endoscopic Instrument Bending Section

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Snake Bone Tube for Endoscopic Instrument Bending Section

Products Name	Customized Snake Bone Tube for Endoscopic Instrument Bending Section
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Product Highlights:

l Precision Laser Cutting & Slotting Technology

Advanced laser cutting ensures every slot on the tube is uniform and precise, enabling flexible linkage and smooth bending between multiple segments.

l Medical-Grade 304/316 Stainless Steel

Constructed from 304 or 316 stainless steel, offering excellent corrosion resistance and high mechanical strength, uncoated surface meeting standard medical metal part requirements.

l Flexible Multi-Segment Articulation

The unique multi-segment structure provides superior flexibility and wide-angle steering, easily navigating complex internal channels.

l Comprehensive Customization Services

Full custom processing available, including precise adjustment of tube diameter, wall thickness, slot shape, segment count, and connector styles.

l High Cleanliness & Smooth Surface Finish

Rigorous cleaning and polishing ensure the tube surface is smooth and burr-free, reducing friction and maintaining excellent stability during high-frequency use.

Frequently Asked Questions:

Q1: How does the multi-segment structure achieve flexible bending?

A1: Precision laser cutting creates uniform slot structures on the tube wall, enabling smooth articulated bending in multiple directions while maintaining good resilience.

Q2: What is the maximum bending angle achievable?

A2: The maximum angle depends on slot density, pitch, and tube diameter. Conventional designs can achieve over 180-degree bending for navigating complex channels.

Q3: Will the snake bone tube suffer fatigue failure after repeated bending?

A3: Made of high-strength stainless steel or Nitinol alloy with optimized slot geometry, it offers excellent fatigue resistance, enduring thousands of repeated bends without failure.

Q4: Can different connection interfaces be machined at both ends?

A4: Yes. Both ends support threaded, Luer Lock, snap-fit, welding, and other interface types for quick connection with different instruments or handles.

Q5: What is the minimum order quantity and lead time?

A5: Minimum order quantity is 50 pieces, with a typical lead time of 10-20 working days, depending on quantity, slot complexity, and material.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
