Customized Snake Bone Tube for Endoscopic Bending Section and Articulation

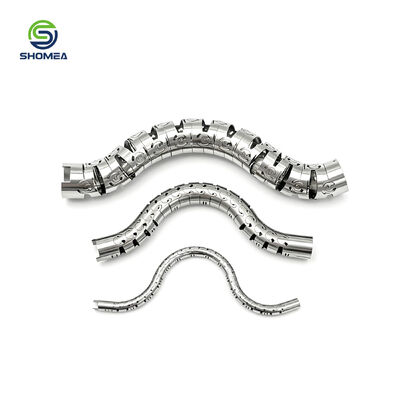

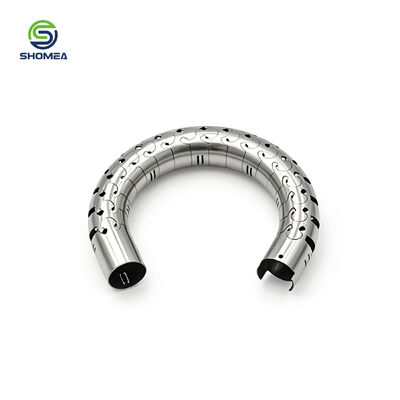

Large Image : Customized Snake Bone Tube for Endoscopic Bending Section and Articulation

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized Snake Bone Tube for Endoscopic Bending Section and Articulation

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Snake Bone Tube for Endoscopic Bending Section and Articulation

Products Name	Customized Snake Bone Tube for Endoscopic Bending Section and Articulation
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Product Highlights:

Precision Laser Slotting & Multi-Section Articulation:Made of 304/316 stainless steel with precision laser-cut slots, each segment is symmetrical for multi-directional smooth bending and reset, ideal for endoscope articulation sections.
Medical-Grade 304/316 Stainless Steel:Constructed from 304 or 316 stainless steel, offering excellent corrosion resistance and high mechanical strength, uncoated surface meeting standard medical metal part requirements.
Custom OD, Pitch & Slot Parameters:Supports drawing-based customization of outer diameter (0.8–6mm), wall thickness, segment count, slot width, and pitch, with straight ends reserved for welding or hub assembly.
Surface Option: Polish or Passivation:Inner/outer surface can be electropolished or pickled and passivated to lower roughness, reduce friction and residue, and ease cleaning.
Flexible End Interface Machining:Straight ends can be machined with threads, Luer hubs, snap grooves, weld flats, etc., fitting handles, pull-wire fixation, and device connection.

Frequently Asked Questions:

Q1: Is this snake bone tube only available in 304/316 stainless steel?

A1: The spec is locked to 304 or 316 stainless steel only, no Nitinol or other alloys mixed in. Other materials can be discussed separately, but this listing covers 304/316 SS only.

Q2: How to choose between 304 and 316?

A2: 304 stainless steel for general use; 316 stainless steel if higher resistance to chloride corrosion (e.g., saline cleaning) is needed.

Q3: Does slotting reduce tube strength?

A3: Slightly, but with optimized slot depth/pitch and the inherent rigidity of 304/316 stainless steel, it retains enough torsion and compression resistance for bending transmission.

Q4: Can pull wires be welded directly to both ends?

A4: Yes. Straight ends are 304/316 stainless steel body, supporting spot welding, laser welding, or solder for pull-wire fixation, followed by passivation.

Q5: What is the MOQ and lead time?

A5: MOQ 50 pcs for 304/316 stainless steel snake bone tube, lead time 10–20 working days depending on slot count and length.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
