Customized Solid Needle with three facet bevel tip

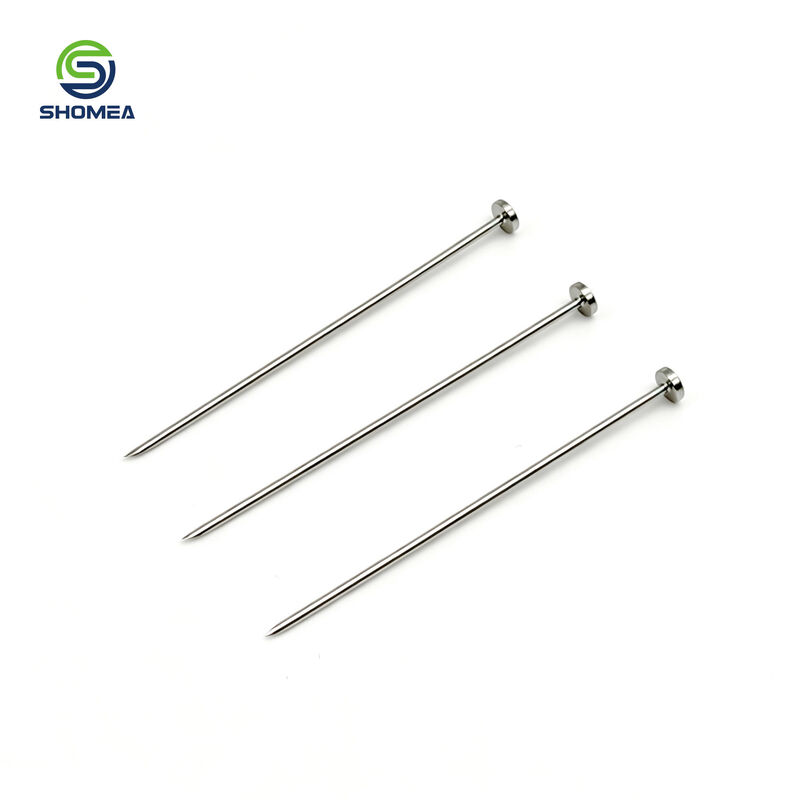

Large Image : Customized Solid Needle with three facet bevel tip

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized Solid Needle with three facet bevel tip

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Solid Needle with three facet bevel tip

Products Name	Customized Solid Needle with three facet bevel tip
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Solid Needle with three facet bevel tip

Product Highlights:

1. Three-Facet Bevel Precision Grinding:Three symmetrical cutting edges reduce puncture resistance for smooth entry and minimize material deformation.
2. Solid Stainless Steel Rod Construction:Machined from solid 304/316L stainless steel rod for high bending strength and rigidity, resisting deformation under stress.
3. High-Precision OD & Straightness:Precision centerless grinding ensures OD tolerance (±0.01mm) and excellent straightness for high-precision assembly.
4. Mirror Polishing & Surface Treatment:Fine polishing and passivation deliver a corrosion-resistant, antioxidant surface that reduces friction and simplifies cleaning.
5. Multi-Spec Customization:Supports customization of tip angle, overall length, and tail interface (chamfer, step, thread) for positioning, guiding, and fastening applications.

Frequently Asked Questions:

Q1: What are the advantages of the three-facet bevel tip design?

A1: Three symmetrical cutting edges reduce puncture resistance for smooth entry, minimizing material deformation or tearing.

Q2: What performance improvements does a solid structure offer?

A2: Machined from solid 304/316L stainless steel rod for high bending strength and rigidity, resisting deformation under force.

Q3: What level of dimensional precision does this product achieve?

A3: Precision centerless grinding ensures OD tolerance (±0.01mm) and excellent straightness for high-precision assembly and guidance.

Q4: What surface treatments are applied for complex environments?

A4: Fine polishing and passivation provide corrosion and oxidation resistance, reducing friction and simplifying cleaning.

Q5: Do you support customization for specific project needs?

A5: Yes. We customize tip angle, overall length, and tail interfaces (chamfer, step, thread) for positioning and guiding applications.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
