Customized Spring Needle with Precision Stainless Steel Compression Coil Structure

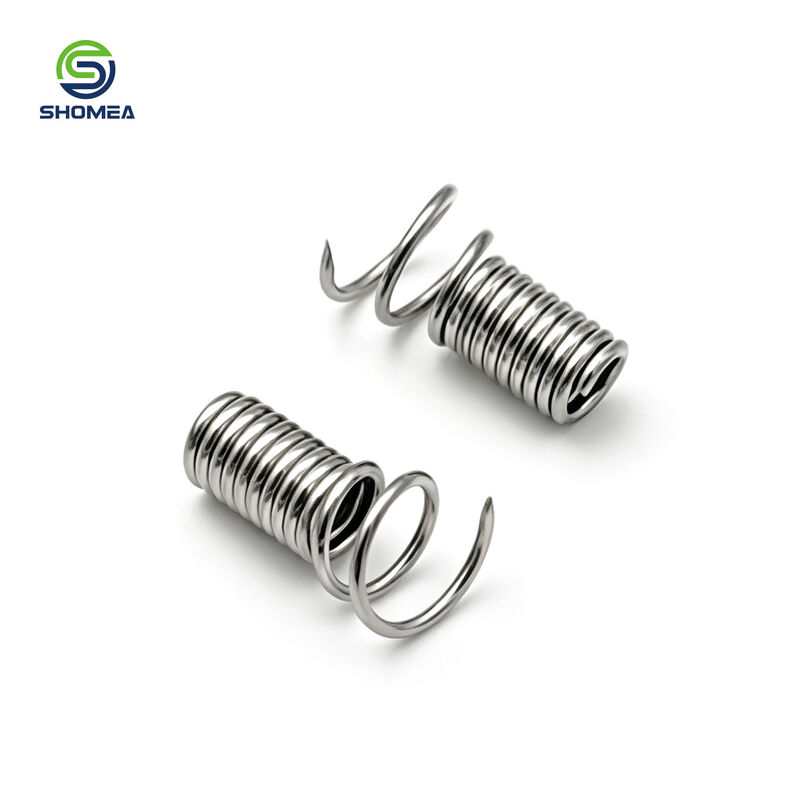

Large Image : Customized Spring Needle with Precision Stainless Steel Compression Coil Structure

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,
Supply Ability:	100000pcs/ month

Contact Now

Customized Spring Needle with Precision Stainless Steel Compression Coil Structure

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Spring Needle with Precision Stainless Steel Compression Coil Structure

Products Name	Customized Spring Needle with Precision Stainless Steel Compression Coil Structure
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Spring Needle with Precision Stainless Steel Compression Coil Structure

Product Highlights:

l High-Elasticity Stainless Steel Material

Made of high-quality stainless steel wire with excellent elastic recovery and fatigue resistance for stable force output after repeated compression.

l Precision OD & Straightness Control

Tight OD tolerance (±0.05mm) and straightness ensure accurate fit with mounting holes, preventing jamming or misalignment.

l Flat-End & Deburring Treatment

Both ends undergo flat grinding and deburring for smooth, flat surfaces, ensuring tight contact with mating parts.

l Multiple Surface Treatment Options

Supports gold plating, nickel plating, or phosphating for enhanced corrosion resistance and electrical conductivity.

l Customizable Specs & Force Adjustment

Customizable wire diameter, coil count, free length, and compression stroke with adjustable force values for diverse applications.

Frequently Asked Questions:

Q1: How many compression cycles can the spring needle withstand?

A1: Made of high-quality stainless steel wire, it withstands hundreds of thousands of cycles with minimal force decay.

Q2: What OD tolerance can the spring needle achieve?

A2: OD tolerance controlled within ±0.05mm for precise fit with mounting holes, preventing jamming.

Q3: Are both ends flat? Will they scratch contact surfaces?

A3: Both ends undergo flat grinding and deburring for smooth surfaces, ensuring tight contact without scratching.

Q4: What surface treatments are available?

A4: Supports gold plating, nickel plating, or phosphating for low contact resistance, corrosion resistance, or rust prevention.

Q5: Can the force and stroke be customized?

A5: Yes. Customizable wire diameter, coil count, free length, and compression stroke with adjustable force values.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
