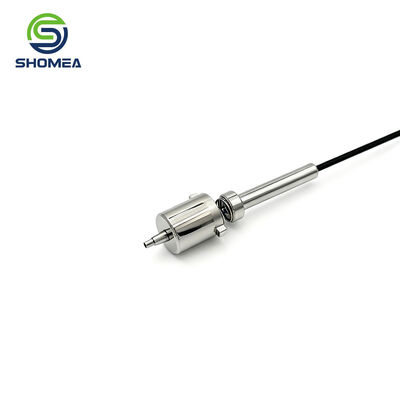

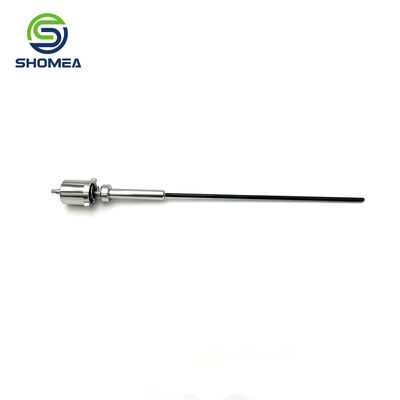

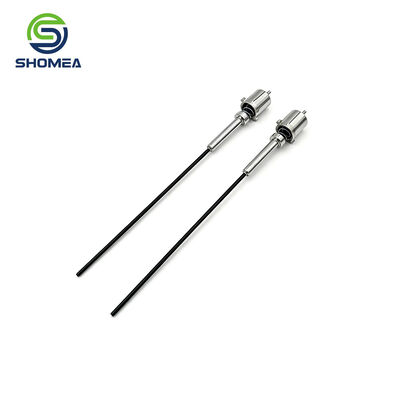

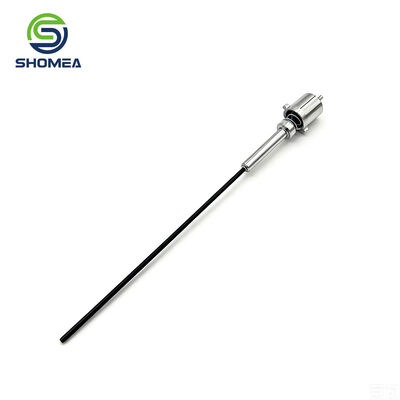

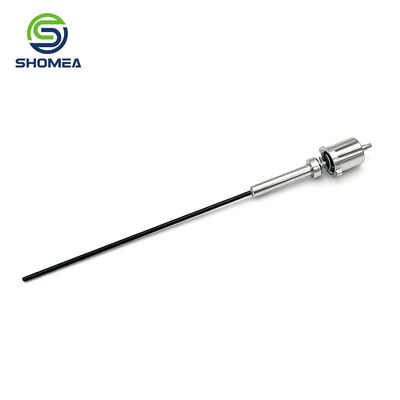

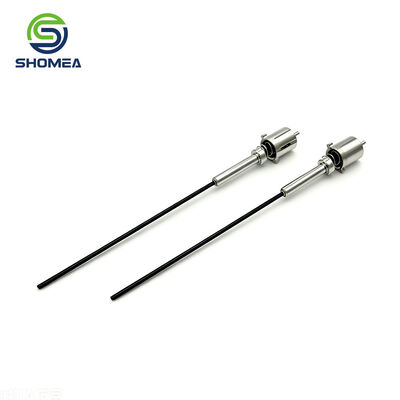

Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)

Name: Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)
Brand: Shenzhen Shomea Hardware Products Co.,Ltd
SKU: OEM
Price: Negotiable USD
Availability: InStock

All Products

Stainless Steel Needle
(292)

Stainless Steel Tube Processing
(182)

Food Piercing Needle
(10)

Flexible Snake Bone Tube
(14)

Stainless Steel IVD Needle
(38)

Dental Presion Components Processing
(12)

Aluminum Telescopic Pole
(89)

Stainless Steel Telescopic Pole
(75)

Certification

I'm Online Chat Now

Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)

Large Image : Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)

Product Details:

Place of Origin:	China
Brand Name:	N/A
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	N/A
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100000pcs/ month

Contact Now

Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)

Products Name	Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized IVD Sampling Probe Component for Automated Biochemical Analyzers (Made to Customer Drawing)

Non-sterile stainless steel flexible/articulated tube component — build to print. Not a finished medical device. Not for individual/clinical direct use. Sold only to qualified equipment/manufacturer customers for further assembly/validation.

Product Highlights:

Stepped variable diameter with ultra-fine slotted tip balances strength and penetrability for precise micro-volume sampling with low residue, maintaining consistent component geometry.
Metal base with polymer sheath, anti-corrosion treated for chemical resistance in long-term reagent contact, ensuring durable component construction.

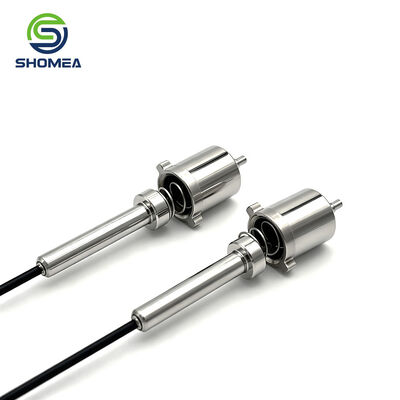

Knurled knob with internal thread interface for hand-tightening, ensuring secure, anti-loosening connection for high-speed motion, ensuring reliable component integration.
Precision CNC machining tightly controls outer diameter, length, and thread tolerance for batch consistency and interchangeability, ensuring reliable component integration.
Customizable thread specification, outer diameter, length, and tip shape to match different diagnostic analyzer models, ensuring reliable component integration.

Frequently Asked Questions:

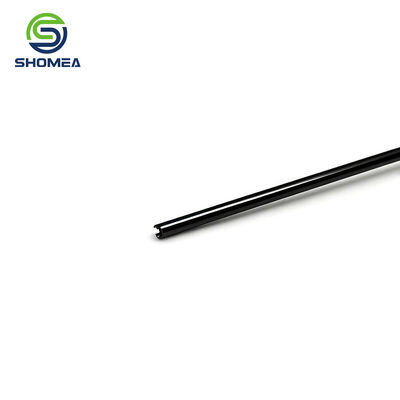

Q1: What are the advantages of the slotted tip design?

A1: The ultra-fine slotted tip precisely pierces septa with reduced resistance, minimizing sample residue for accurate micro-volume aspiration and dispensing, maintaining consistent component geometry.

Q2: What is the function of the polymer black sheath?

A2: The polymer sheath (e.g., PEEK) offers excellent chemical resistance and insulation, protecting the internal metal structure and extending service life in various reagent environments, ensuring durable component construction.

Q3: Is the knurled knob and internal thread interface easy to operate?

A3: The knurled knob allows easy hand-tightening, while the internal thread interface ensures a secure connection with instrument tubing, preventing loosening during high-speed motion, ensuring reliable component integration.

Q4: How is the dimensional accuracy? Can batch consistency be guaranteed?

A4: Precision CNC machining strictly controls outer diameter, length, and thread tolerance, ensuring high consistency and interchangeability for automated production lines, ensuring reliable component integration.

Disclaimer

Shenzhen Shomea Hardware Products Co., Ltd. is a precision metal components manufacturer. We provide build-to-print machining of small-diameter stainless steel tubes, probe/tube components, threaded hubs, knurled parts and bent tubes.

We do not sell finished medical devices, sterile devices, IVD reagents or surgical instruments. All items are non-sterile machined components produced according to the buyer’s drawings, samples and specifications.

Design validation, biocompatibility, sterilization, labeling and regulatory approval of the finished medical device are the responsibility of the purchaser (medical device manufacturer / equipment brand owner).

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
