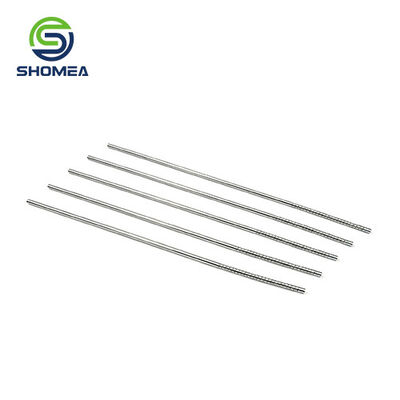

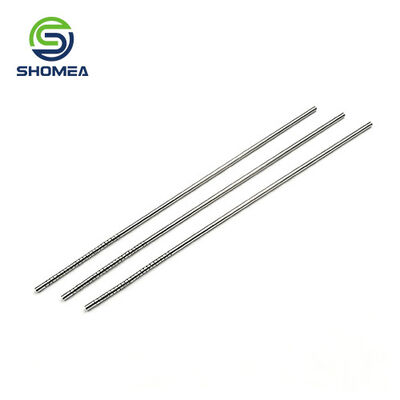

Customized Medical Flexible Coil Tube With High Grade Stainless Steel

Name: Customized Medical Flexible Coil Tube With High Grade Stainless Steel
Brand: Shenzhen Shomea Hardware Products Co.,Ltd
SKU: OEM
Price: 15 USD
Availability: InStock

All Products

Stainless Steel Needle
(286)

Stainless Steel Tube Processing
(169)

Aluminum Telescopic Pole
(89)

Stainless Steel Telescopic Pole
(75)

Stainless Steel IVD Needle
(34)

Dental Presion Components Processing
(12)

Certification

I'm Online Chat Now

Customized Medical Flexible Coil Tube With High Grade Stainless Steel

Large Image : Customized Medical Flexible Coil Tube With High Grade Stainless Steel

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100000pcs/ month

Contact Now

Customized Medical Flexible Coil Tube With High Grade Stainless Steel

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Medical Flexible Coil Tube With High Grade Stainless Steel

Products Name	Customized Medical Flexible Coil Tube With High Grade Stainless Steel
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Medical Flexible Coil Tube With High Grade Stainless Steel

Product Highlights:

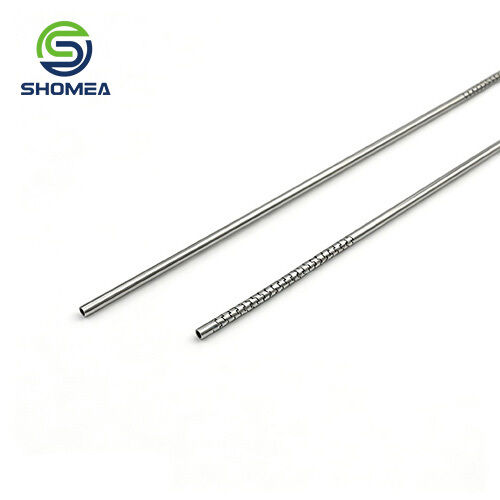

Precision Laser Slotting – Tube body is laser-cut into segmented structure for controlled bending and smooth steering while maintaining structural integrity.
Premium Stainless Steel – Made from medical-grade stainless steel with corrosion resistance, biocompatibility, and high surface finish.
High Coaxiality – Achieved through precision diameter reduction and CNC sizing, ensuring accurate alignment and uniform wall thickness for stable assembly.
Custom Dimensions – Supports customization of length, outer diameter, slot geometry, and end structures to fit various equipment requirements.

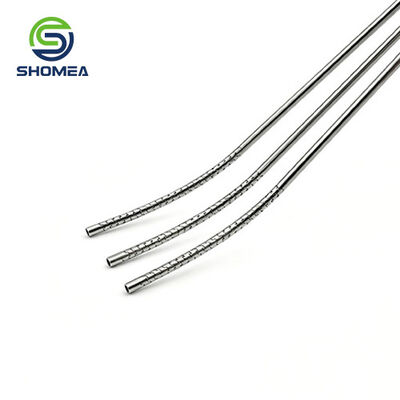

Flexible Steering & Recovery – Segmented design provides excellent bending flexibility and shape retention for smooth operation in confined spaces.

Frequently Asked Questions:

Q1: How are the patterns on the snake bone tube processed? Does it affect strength?

A1: Using laser cutting or CNC grooving with optimized slot pitch and material allowance, enhancing bending freedom while maintaining hoop strength.

Q2: Can the tube be customized to a specific curved shape?

A2: Yes, through die shaping and heat treatment, we achieve pre-curved forms or elastic straightening to fit different guidance paths.

Q3: What surface treatment options are available?

A3: Options include electropolishing, passivation, or mirror finishing for low roughness surfaces that reduce residue and improve oxidation resistance.

Q4: How is quality ensured for both small and large batches?

A4: With flexible production lines and full-process inspection, consistent quality standards are maintained for both prototyping and mass production.

Q5: Do you support variable-diameter or multi-section designs?

A5: Yes, we can achieve multi-step diameter changes, combined slot patterns, or local reinforcement in one piece for complex requirements.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
