Customized Hollow Flexible Tube with Multi Segment Steering

Large Image : Customized Hollow Flexible Tube with Multi Segment Steering

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	100000pcs/ month

Contact Now

Customized Hollow Flexible Tube with Multi Segment Steering

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Hollow Flexible Tube with Multi Segment Steering

Products Name	Customized Hollow Flexible Tube with Multi Segment Steering
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Frequently Asked Questions:

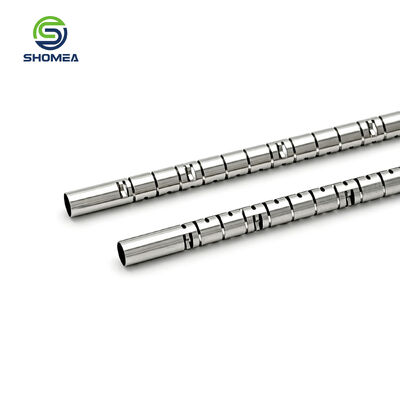

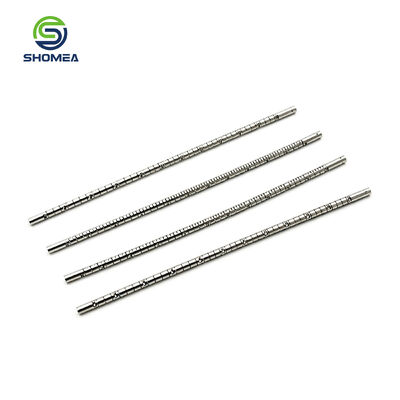

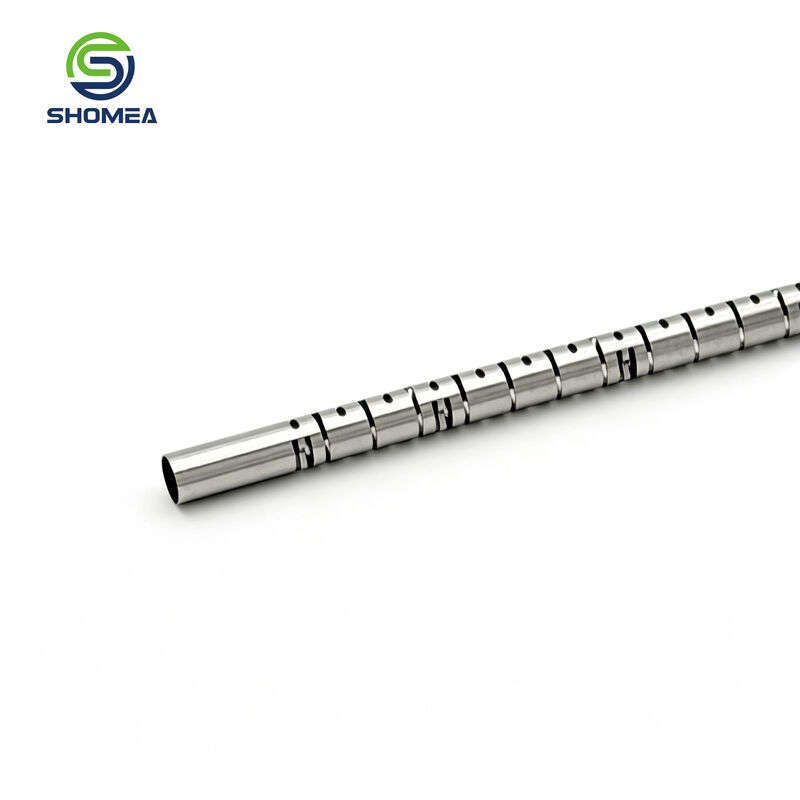

Unique Segmented Grooving Design:The core Hollow Flexible Tube features precision segmented grooving, offering excellent flexibility and controllable bending for complex paths.
Premium Stainless Steel Material:Made of premium stainless steel with a glossy polish, it provides corrosion and wear resistance. The hollow body ensures smooth fluid passage.
Excellent Malleability & Shape Retention:Supports custom molding from straight to multi-directional bends, effectively retaining the set shape for stable support and precise steering.
Precision Dimension Customization:Offers multi-spec diameters and lengths with flat ends and side holes. Drawing-based customization meets strict medical precision and tolerance.
Wide Medical Adaptability:As an ideal medical metal tube, it suits precision drainage, channel establishment, and internal connection, enhancing equipment reliability and durability.

Frequently Asked Questions:

Q1: How does this "Hollow Flexible Tube" achieve flexible bending?

A1: The tube body adopts a unique segmented grooving design, providing excellent flexibility. It supports custom molding from straight to multi-directional bends and effectively retains the set shape for complex paths.

Q2: What are the advantages of the material and surface treatment?

A2: Made of premium stainless steel with a glossy polish, it offers excellent corrosion and wear resistance. The hollow structure ensures smooth fluid passage.

Q3: Do you support customization for special sizes or drawings?

A3: Yes. We offer multi-spec diameters and lengths with flat ends and side holes. Drawing-based customization strictly meets precision and tolerance standards.

Q4: What scenarios is this flexible tube mainly suitable for?

A4: As an ideal medical metal tube, it is widely used for precision drainage, channel establishment, and internal connection, enhancing overall reliability and durability.

Q5: What is the practical function of the side holes on the tube?

A5: The partial side hole design combined with the hollow body facilitates multi-directional fluid guidance and even flow, providing superior fluid dynamics in complex channel establishment.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
