Customized Swiss Machined Step Tube with Stainless Steel Material

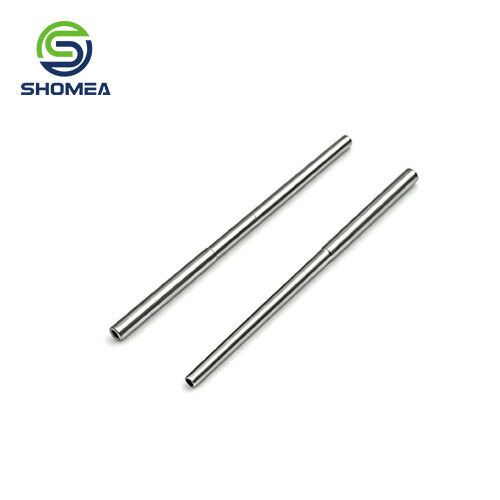

Large Image : Customized Swiss Machined Step Tube with Stainless Steel Material

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized Swiss Machined Step Tube with Stainless Steel Material

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Swiss Machined Step Tube with Stainless Steel Material

Products Name	Customized Swiss Machined Step Tube with Stainless Steel Material
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Swiss Machined Step Tube with Stainless Steel Material

Product Highlights:

Formed into tubular step structure via Swiss precision turning machining, the step boundary is flat without protrusion or dislocation. The two sections of pipe feature high coaxiality to ensure smooth assembly alignment.

Manufactured with medical grade seamless stainless steel raw material, the pipe wall features uniform thickness and outstanding rigidity, resisting bending deformation during long-term service as internal support or flow guide components for instruments.

Both inner and outer walls are processed by mirror electropolishing, the inner wall is burr-free while the outer wall is wear-resistant and bright, greatly enhancing corrosion resistance for clean medical application scenarios.

All dimensions are controlled under micron-level precise tolerance. Outer diameter, inner diameter, overall length and step length can be customized as required, with dimensional error steadily controlled within ±0.03mm to meet assembly standards of precision parts.

Adopts integrally formed stepped reducing hollow structure with no secondary splicing or welding, delivering better sealing performance and structural strength. Further deep processing with needles and connectors is available for diversified customized demands.

Frequently Asked Questions:

Q1: What coaxiality accuracy can this Swiss machined step tube achieve?

A1: The coaxiality of the two stepped sections is controlled within 0.02mm. The step joint is flat and smooth, ensuring no eccentric jamming during assembly.

Q2: What surface treatment is applied, and how is its corrosion resistance?

A2: Both walls are finished with mirror electropolishing. The surface is burr-free and scratch-free with reliable corrosion resistance under routine medical disinfection and humid conditions.

Q3: Are all dimensional parameters customizable?

A3: Yes. Four core dimensions are customizable: pipe diameter, overall length, step length, and wall thickness. Overall tolerance is stably kept at ±0.03mm.

Q4: What raw material is used, and is the structural strength stable?

A4: Made of medical seamless stainless steel tube with integral turning. It features uniform wall thickness and excellent bending and torsion resistance without deformation after repeated use.

Q5: What secondary deep processing services are available?

A5: Supported options include tip sharpening, hole punching, slotting, knurled joint assembly, and luer hub welding for one-stop processing.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
