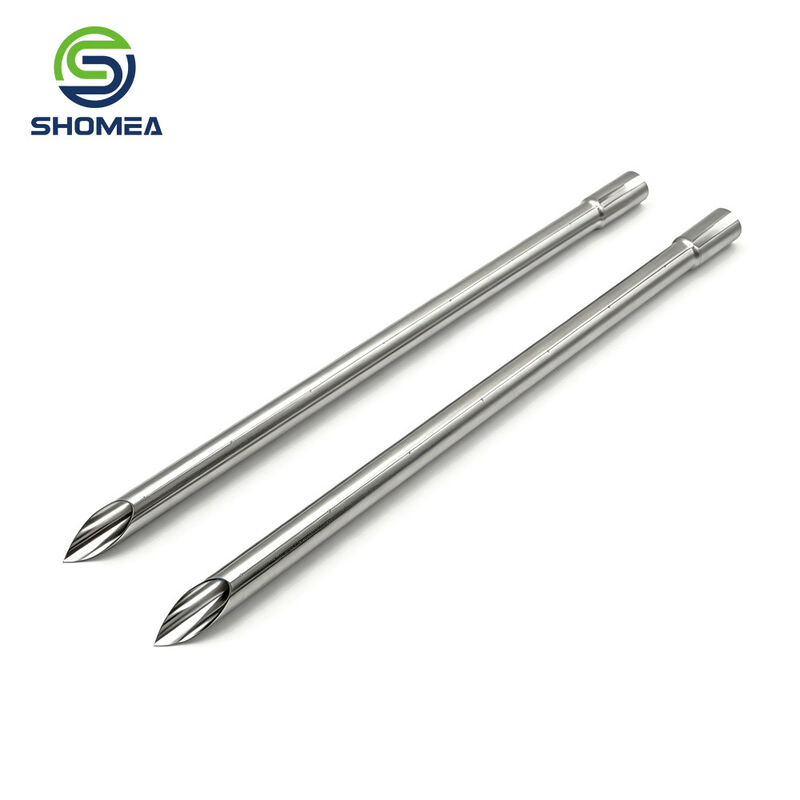

Customized Peelable Sheath Cannula of Medical Grade Stainless Steel

Large Image : Customized Peelable Sheath Cannula of Medical Grade Stainless Steel

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized Peelable Sheath Cannula of Medical Grade Stainless Steel

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized Peelable Sheath Cannula of Medical Grade Stainless Steel

Products Name	Customized Peelable Sheath Cannula of Medical Grade Stainless Steel
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized Peelable Sheath Cannula of Medical Grade Stainless Steel

Product Highlights:

1. Precise Structural Design: Adopts standard 20G outer diameter (~0.9mm), all-metal needle body with peelable sheath cannula, compatible with mainstream syringes and catheter systems, suitable for veterinary, laboratory, and industrial fluid applications.

2. Easy Peel-Away Design: The hub features a slitted structure, allowing smooth peeling along preset cuts without residual debris, ensuring operational fluency and safety for subsequent use.

3. High-Strength Material: Made from medical-grade stainless steel, processed via cold drawing and surface polishing, offering superior rigidity, bend resistance, and corrosion resistance, suitable for repeated sterilization and reuse.

4. Multiple Length Options: Available in 60mm to 200mm lengths, meeting various injection depth requirements (subcutaneous, intramuscular, intraperitoneal, etc.), compatible with different animal sizes and device interfaces.

5. Strong Sterilization Compatibility: Needle body features no dead ends or grooves, fully compatible with 134℃ autoclaving and ethylene oxide (EO) sterilization, ensuring sterile safety and compliance with standard lab and veterinary practices.

Frequently Asked Questions:

Q1: Is this peelable sheath cannula suitable for vaccine injection in large animals like pigs or cattle?

A1: Yes, very suitable. Its 20G gauge and extended needle body (up to 200mm) can easily penetrate thick skin and fat layers, paired with peelable sheath, enabling efficient operation and reduced tissue trauma.

Q2: Will the needle tip become dull after removing the outer sheath?

A2: No. The peeling occurs only at the hub, leaving the needle tip's original sharpness and beveled structure intact — ensuring smooth entry and no compromise on penetration force or precision.

Q3: Is the needle body prone to bending after repeated use?

A3: No. The needle body is made of medical-grade stainless steel with cold drawing process, offering high rigidity, bend resistance, and fatigue resistance — remains straight and stable even after multiple punctures or sterilizations.

Q4: Can the tail interface be customized to match our equipment?

A4: Absolutely. We offer custom tail interface services, supporting Luer Lock, male/female ends, threaded, flat ends, etc. Just provide your device model or drawing, and we'll ensure precise matching.

Q5: Does this needle support high-temperature sterilization? How many times can it be reused?

A5: Yes. The needle body withstands 134℃ autoclave sterilization. With proper cleaning and maintenance, it can be reused over 10 times, offering cost-effectiveness for high-frequency operations.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
