Customized 20G Interventional Needle with Yellow Wing Hub

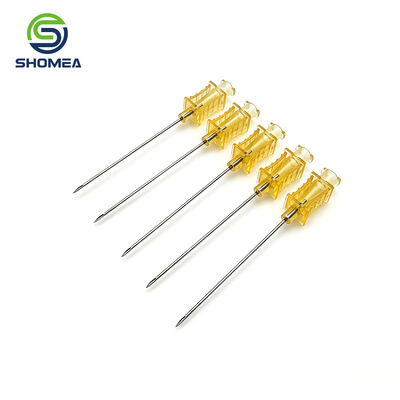

Large Image : Customized 20G Interventional Needle with Yellow Wing Hub

Product Details:

Place of Origin:	China
Brand Name:	Shomea
Certification:	ISO13485
Model Number:	OEM

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	15USD
Packaging Details:	polybag, carton, wooden case or according to your request
Delivery Time:	5-25 Days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100000pcs/ month

Contact Now

Customized 20G Interventional Needle with Yellow Wing Hub

Description

Material:	Stainless Steel, Nitinol, Brass, Copper	Tube Outer Diameter:	0.25-15mm
Tube Wall Thickness:	0.05-3mm	Tolerance:	OD/ID±0.02mm L±0.5mm
Samples:	Usually Provid 5pcs For Test Before Mass Production	Delivery Time:	5-20days Or According To Quantity
LOGO:	Can Be Customized

Customized 20G Interventional Needle with Yellow Wing Hub

Products Name	Customized 20G Interventional Needle with Yellow Wing Hub
Material	Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment	Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter	0.25-15mm
Tube wall Thickness	0.05-3mm
meta Base	Male and Female thread
Tolerance	OD/ID±0.02mm L±0.05mm or According to Drawing
Size	3G-32G or Customized
LOGO	Can be customized according to your drawing
Samples	Usually provid 5-10pcs samples for testing before mass production
Delivery Time	usually 5-25days or according to quantity

Customized 20G Interventional Needle with Yellow Wing Hub

Product Highlights:

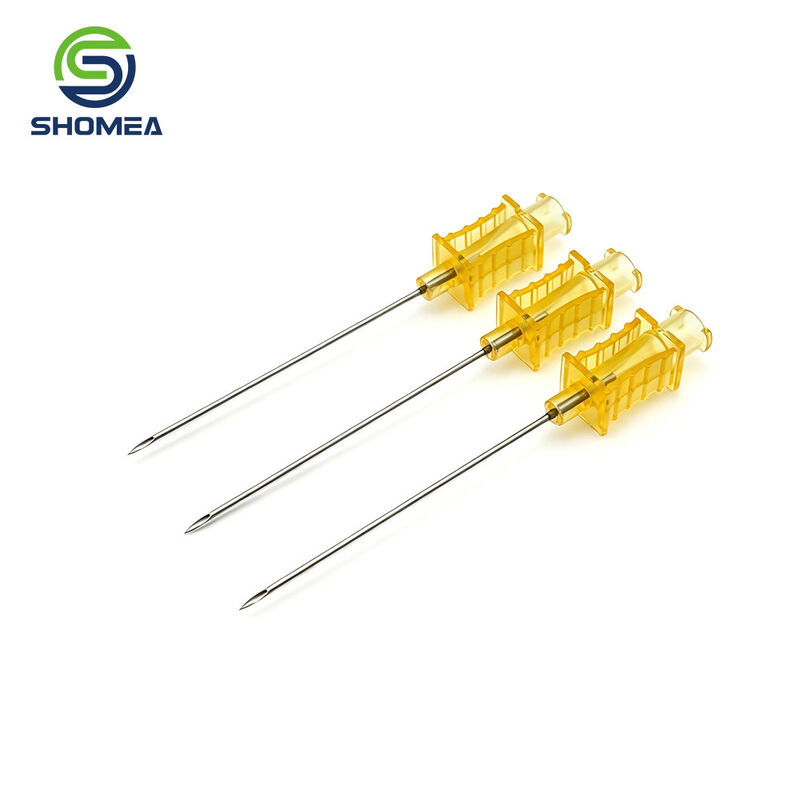

Material & Structure:Adopt medical - grade stainless steel needle body matched with yellow plastic wing - type hub. The needle body is slender with sufficient rigidity, with low resistance during puncture; the hub has anti - slip patterns for firm grip and is compatible with Luer Lock syringes/catheters.
Specification & Precision:20G standard specification, the needle tip is precisely ground, with sharp edge and accurate puncture positioning to reduce tissue damage; the needle tube has uniform wall thickness to ensure stable liquid/gas transmission.
Compatibility & Adaptation:The hub supports Luer Lock connection, which can be seamlessly connected to mainstream syringes, drainage tubes, biopsy guns and other equipment; the wing - type design is convenient for manual fixation and improves operation convenience.
Sterilization & Durability:Supports ethylene oxide (EO) sterilization or gamma ray sterilization, disposable (customizable for repeatable sterilization); the needle body is corrosion - resistant and performance shows no obvious decline after sterilization.
Application Scenarios:Suitable for image - guided puncture (e.g., under ultrasound/CT guidance), biopsy sampling, local anesthesia injection, vascular/body cavity drainage and other minimally invasive operations, covering clinical, veterinary and other fields.

Frequently Asked Questions:

Q1: Is this 20G interventional needle suitable for novice doctors to practice puncture?

A1: Very suitable. The needle tip is sharp with low puncture resistance, easy for novices to control force; the wing - type hub has good anti - slip performance, firm grip, helping to quickly familiarize with puncture feel and reduce practice error rate.

Q2: Is the needle body or hub prone to breakage or loosening?

A2: Not easy. The medical - grade stainless steel needle body has sufficient rigidity, not easy to bend/break under daily operation (non - violent bending); the plastic hub and needle body are tightly pressed together, with firm connection and not easy to loosen.

Q3: Can the hub interface type be customized according to our equipment?

A3: Yes. We provide hub interface customization service, supporting Luer Lock, male/female ends, special threads and other types. Just provide device model/drawing, and we can match it accurately.

Q4: Is this interventional needle disposable or repeatable sterilization?

A4: By default, it is disposable (EO sterilization), and repeatable sterilization version (supporting 134℃ autoclaving) is also available; the needle body is anti - corrosion treated, with no obvious decline in sharpness and structural strength after sterilization.

Q5: How does the 20G specification affect puncture trauma and efficiency?

A5: 20G is a medium - thin specification, with small puncture trauma (suitable for thin tissue/fine sites) and moderate flow rate, balancing “precise sampling” and “efficient operation”; if you need thicker/thinner, other gauges (e.g., 18G/22G) can be customized.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
