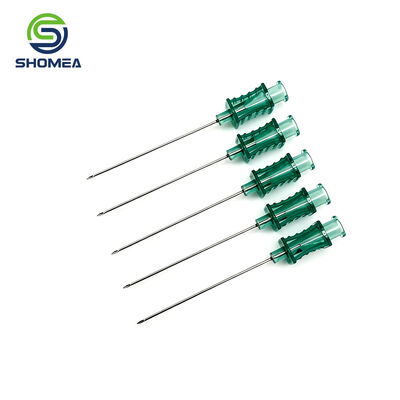

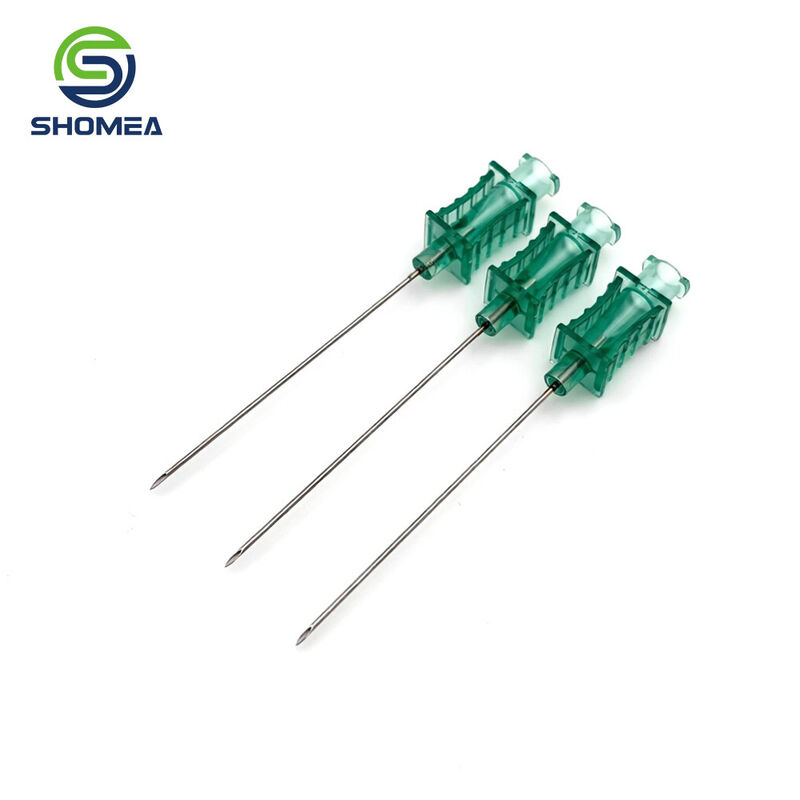

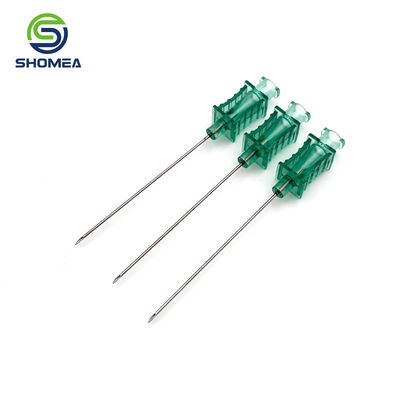

Customized 21G Interventional Needle for clinical minimally invasive puncture

Description
Material: Stainless Steel, Nitinol, Brass, Copper Tube Outer Diameter: 0.25-15mm
Tube Wall Thickness: 0.05-3mm Tolerance: OD/ID±0.02mm L±0.5mm
Samples: Usually Provid 5pcs For Test Before Mass Production Delivery Time: 5-20days Or According To Quantity
LOGO: Can Be Customized

Customized 21G Interventional Needle for clinical minimally invasive puncture

Products Name  Customized 21G Interventional Needle for clinical minimally invasive puncture
Material Stainless Steel, Brass, Aluminum, brass, copper ,etc
Surface treatment Sandblasting, polishing, knurling, laser marking, etc
Tube Outer Diameter 0.25-15mm
Tube wall Thickness 0.05-3mm
meta Base Male and Female thread
Tolerance OD/ID±0.02mm L±0.05mm or According to Drawing
Size 3G-32G or Customized
LOGO Can be customized according to your drawing
Samples Usually provid 5-10pcs samples for testing before mass production
Delivery Time usually 5-25days or according to quantity

Customized 21G Interventional Needle for clinical minimally invasive puncture

Product Highlights:

  • Specification & Size:The outer diameter of the 21G interventional needle is about 0.8mm, and the effective puncture length is customizable (common 50mm/80mm), meeting the puncture needs of different tissue depths.
  • Material & Process:The needle body is made of medical - grade stainless steel, treated with precision wire drawing and edge grinding; the needle tip is sharp with low puncture resistance; the plastic hub is made of environmentally friendly ABS material, resistant to chemical corrosion and drop - resistant.
  • Structural Design:The wing - type hub design​ is convenient for manual gripping and force application, and the anti - slip texture improves operational stability; the Luer Lock interface​ adapts to standard syringes/catheters, with firm connection and no falling off.
  • Sterilization & Reuse:By default, it is sterilized by ethylene oxide (EO) and disposable; a repeatable sterilization version (supporting 134℃ autoclaving)​ can also be customized. The needle body and hub are anti - corrosion treated, with no obvious performance decline after sterilization.
  • Application Scenarios:It is suitable for ultrasound/CT - guided puncture biopsy, local anesthesia injection, thoracic/abdominal effusion drainage, vascular access establishment​ and other minimally invasive interventional operations, covering clinical, veterinary and other fields.

Frequently Asked Questions:

Q1: Is the 21G interventional needle more traumatic than 20G because it's thicker?
A1: The outer diameter of 21G is about 0.8mm, a medium - sized specification, with less trauma than thicker 18G; moreover, the needle tip is precisely ground, with weak tissue tearing feeling​ during puncture. With the stable grip of the wing - type hub, it can control the trauma at a low level​ while ensuring sampling/drainage efficiency.

Q2: The hub is green, is there any special meaning? Or can the color be customized?
A2: The green hub is mainly for visual differentiation of specifications (some manufacturers use colors to identify G numbers), and the hub color can also be customized (such as blue, yellow, etc.)​ according to needs; but functionally, it does not affect sealing and operation. Just provide the color number or sample.

Q3: Can this needle be used with our existing syringes?
A3: Yes. The needle body uses a standard Luer Lock interface. As long as your syringe/catheter is Luer Lock - compatible, it can connect tightly without leakage risk; if your device has a special interface, you can also provide drawings, and we will customize the matching hub.

Q4: How to choose between disposable and repeatable sterilization versions?
A4: If it is for high - frequency use in outpatient/emergency departments, it is recommended to choose the disposable version (EO sterilized, ready to use)​ to avoid cross - infection; if it is for unified management by the hospital sterilization supply room, the repeatable sterilization version (134℃ autoclaved)​ can be selected, with lower long - term use cost.

Q5: Is the needle body easy to bend? What should be paid attention to during operation?
A5: The medical - grade stainless steel needle body has good rigidity, and it is not easy to bend​ under normal puncture (non - violent torsion); it is recommended to keep the needle body perpendicular to the skin​ during operation, and use the anti - slip texture of the wing - type hub to stabilize the force, avoiding needle body deformation caused by lateral force.

For Tooling Cost, We need fully amount payment, For goods payment, if amount less than 1500USD, We need fully payment ,If more than 1500USD, We can accept 50% as deposit, the balance should be pay before ship all goods.
